Camshaft Cover - Left Side
WARNING: This page is about a different variant/trim than selected.

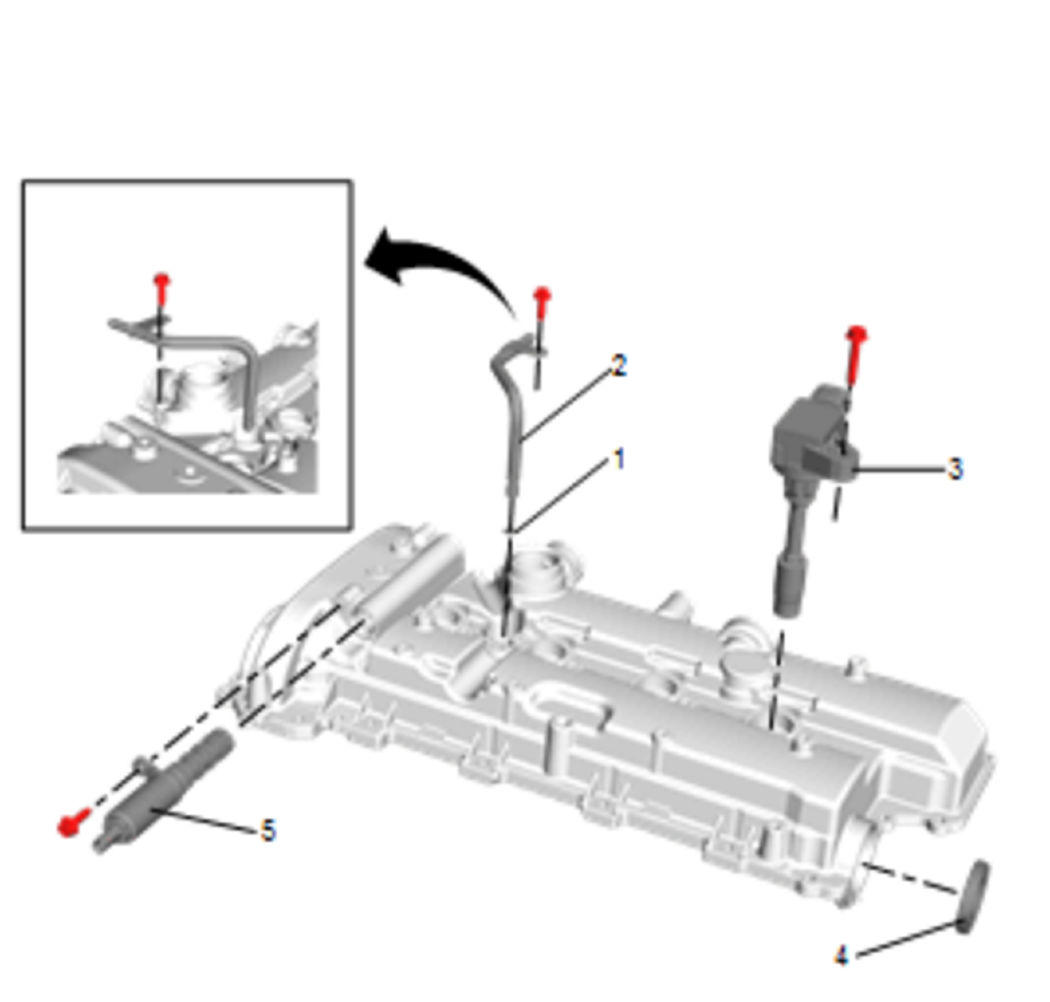

Camshaft Cover - Left Side
| Callout | Component Name |
|---|---|
| Preliminary Procedure Inspect each component, O-rings, and fasteners, and replace as necessary. |
|
| 1 | Engine Coolant Air Bleed Pipe O-Ring |
| 2 | Engine Coolant Air Bleed Pipe
NOTE:
Component may vary by model. |
| 3 | Ignition Coil |
| 4 | Vacuum Pump Seal Special Tools DT 45866 Input Shaft Seal Installer For equivalent regional tools, refer to Special Tools . |
| 5 | Camshaft Position Actuator Control Solenoid Valve |
