Camshaft Cleaning and Inspection

WARNING: This page is about a different variant/trim than selected.

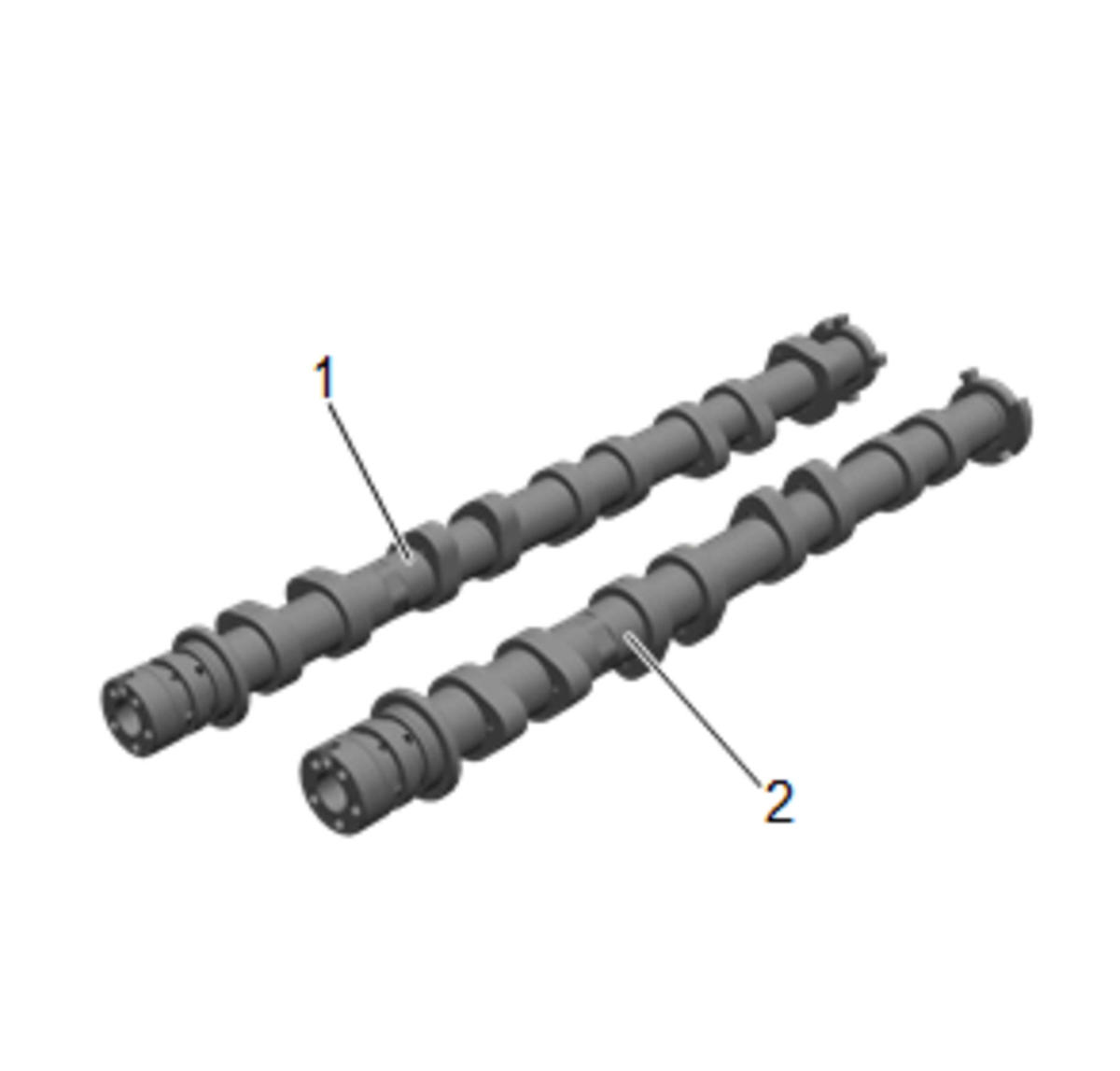

  1. GM2742583Courtesy of GENERAL MOTORS COMPANY

    Inspect the camshaft journals and lobes for wear or scoring.

  2. Inspect the camshaft sprocket alignment notch for damage.
  3. Wash the camshafts (1, 2) in solvent.
  4. Oil the camshafts.
