Camshaft Assembly Disassemble
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

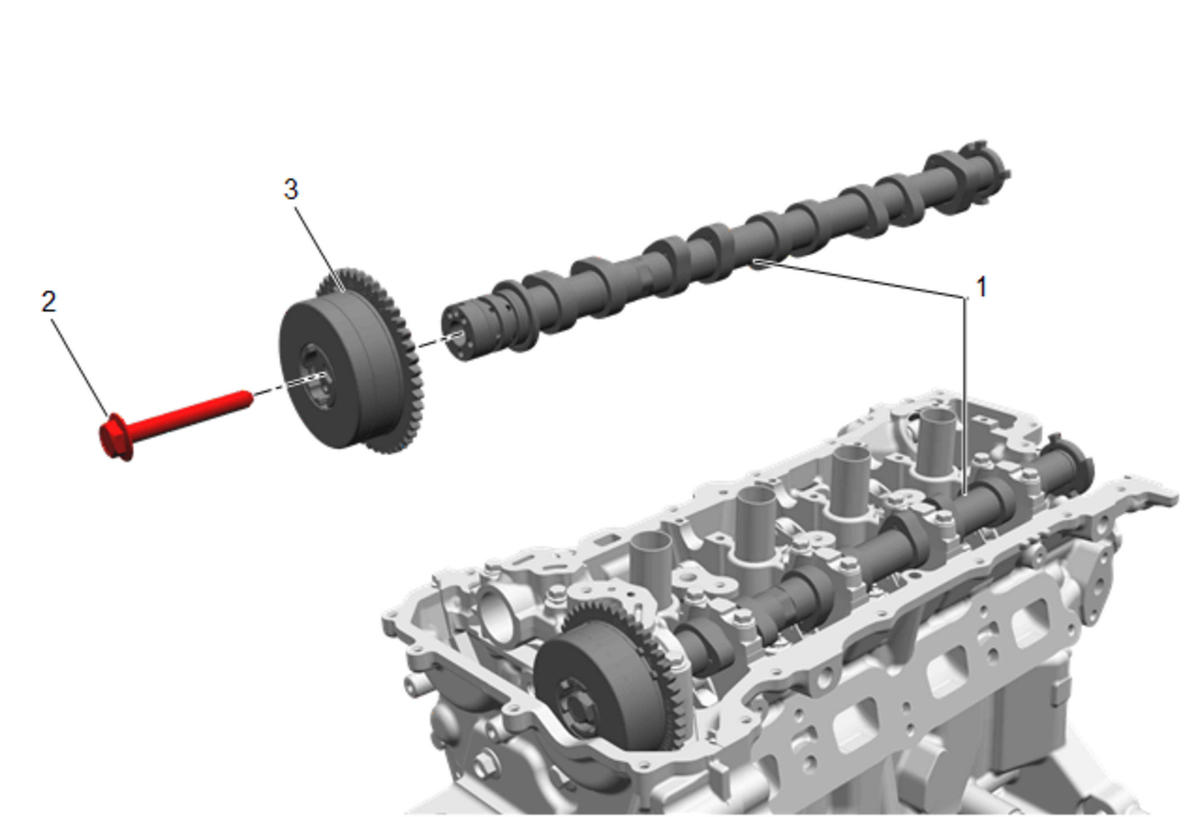

| Callout |
Component Name |
|
Preliminary Procedures
- Temporarily install the cylinder head to the engine block, with the engine block securely attached to a mounting device.
- Temporarily install the engine front cover to the cylinder head, using the upper bolts to hold the cover in position.
- Install one of the camshafts in the exhaust camshaft position on the cylinder head.
- Install the camshaft bearing front upper cap and bolts.
- Install the camshaft bearing caps and bolts.
- Install EN-50793
locking tool onto the camshaft actuator and engine front cover.
- The camshaft actuator bolt can now be loosened and the actuator removed from the camshaft. Repeat preliminary procedure for the remaining camshaft assembly.
|
| 1 |
Camshaft, Intake and Exhaust |
| 2 |
Camshaft Position Actuator Bolt
Special Tools
EN-50793
Camshaft Actuator Locking Tool
For equivalent regional tools, refer to Special Tools . |
| 3 |
Camshaft Position Actuator, Intake and Exhaust |
