Balancer Shaft with Oil Pump Cleaning and Inspection

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

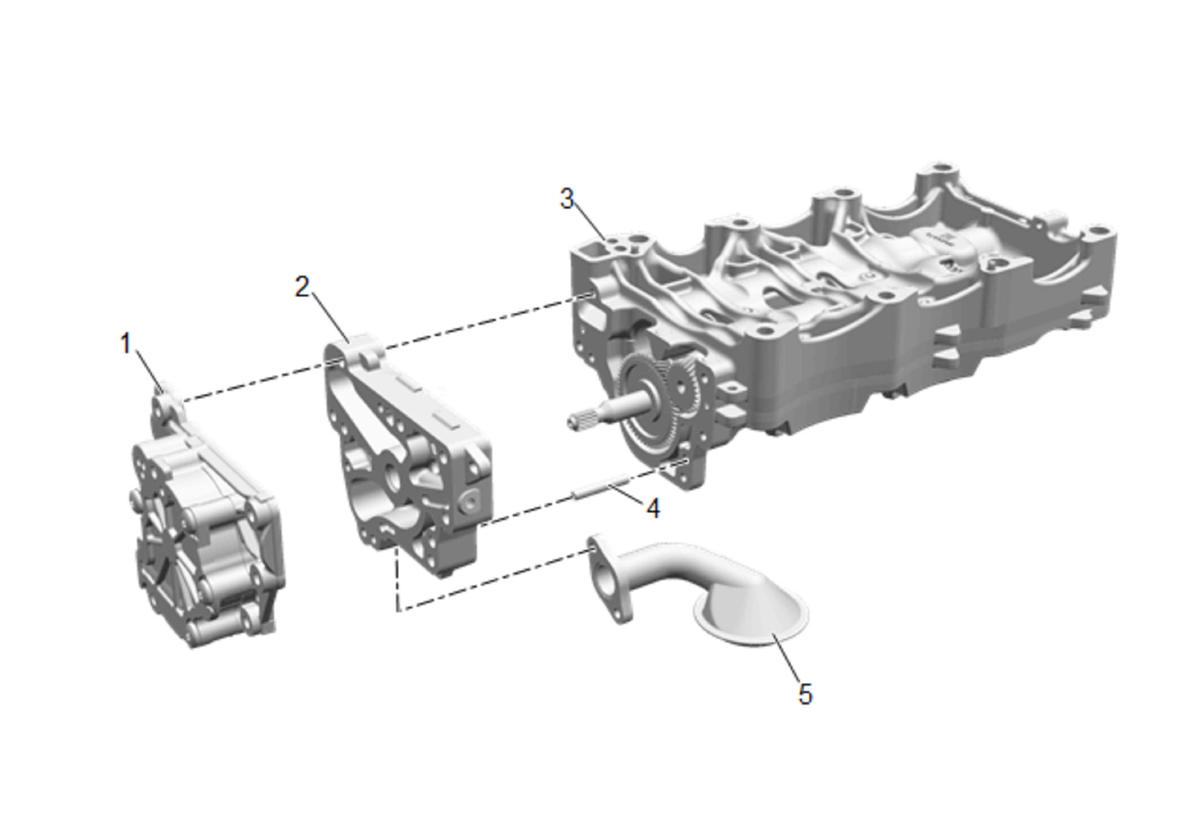

Callout	Component Name
Preliminary Procedures Completely inspect the balancer with oil pump shaft assembly and components. Clean all mating surfaces. Inspect all threaded holes for damage. Inspect the oil pump screen assembly.
1	Oil Pump Assembly
2	Oil Pump Cover
3	Balancer Shaft Module
4	Oil Pump Locating Pin
5	Oil Pump Screen Assembly with Suction Pipe
