Removal Procedure

Special Tools

• EN-45059  Angle Meter
• EN-50792  Holding Tool

Equivalent regional tools: Special Tools

1. Transmission - Remove - Transmission Replacement (All Wheel Drive) , or Transmission Replacement (Front Wheel Drive)

2. Courtesy of GENERAL MOTORS COMPANY

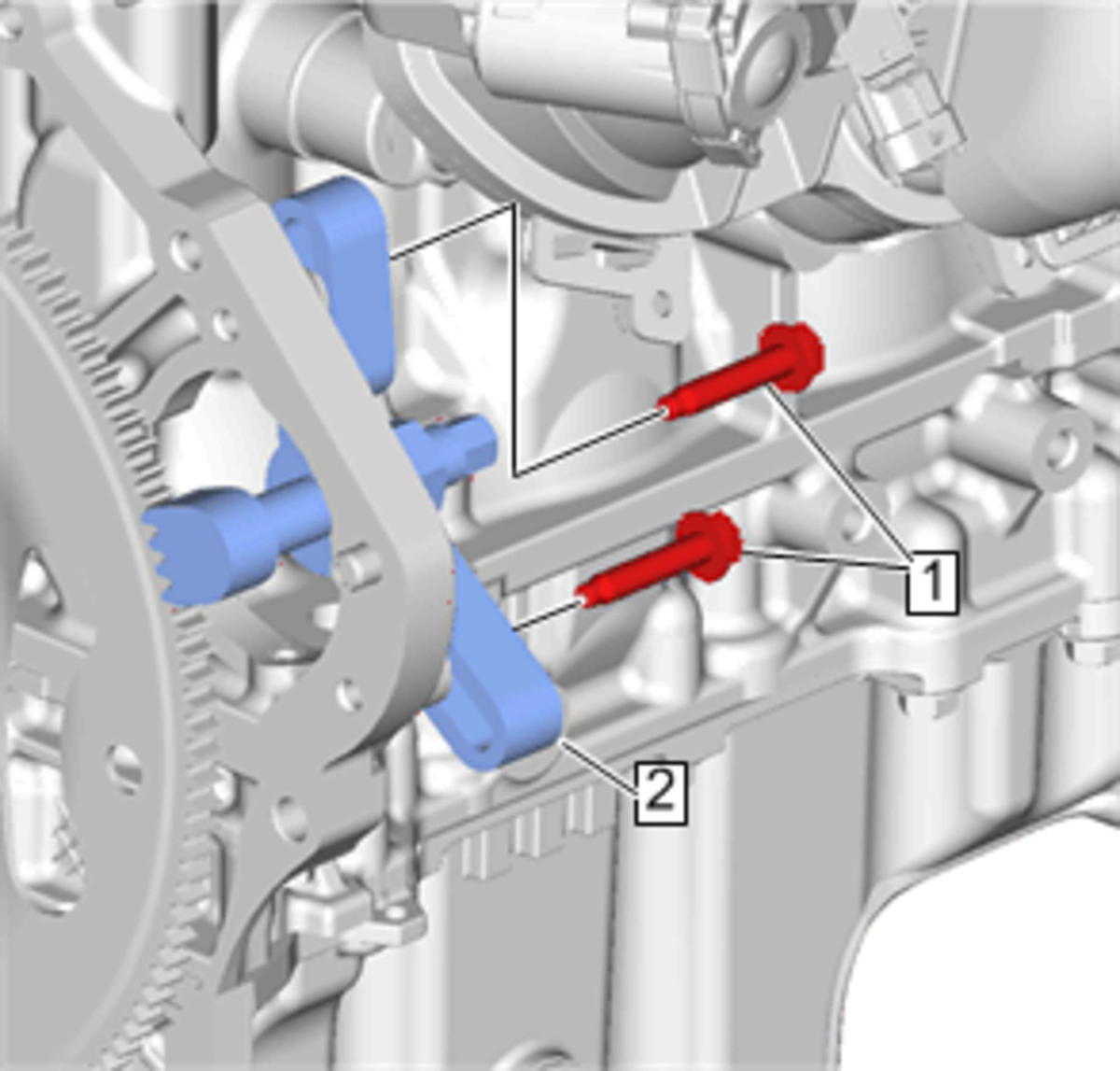

   Install the EN-50792  Holding tool (2) using the 2 starter motor bolts (1) to prevent crankshaft rotation.

3. Courtesy of GENERAL MOTORS COMPANY

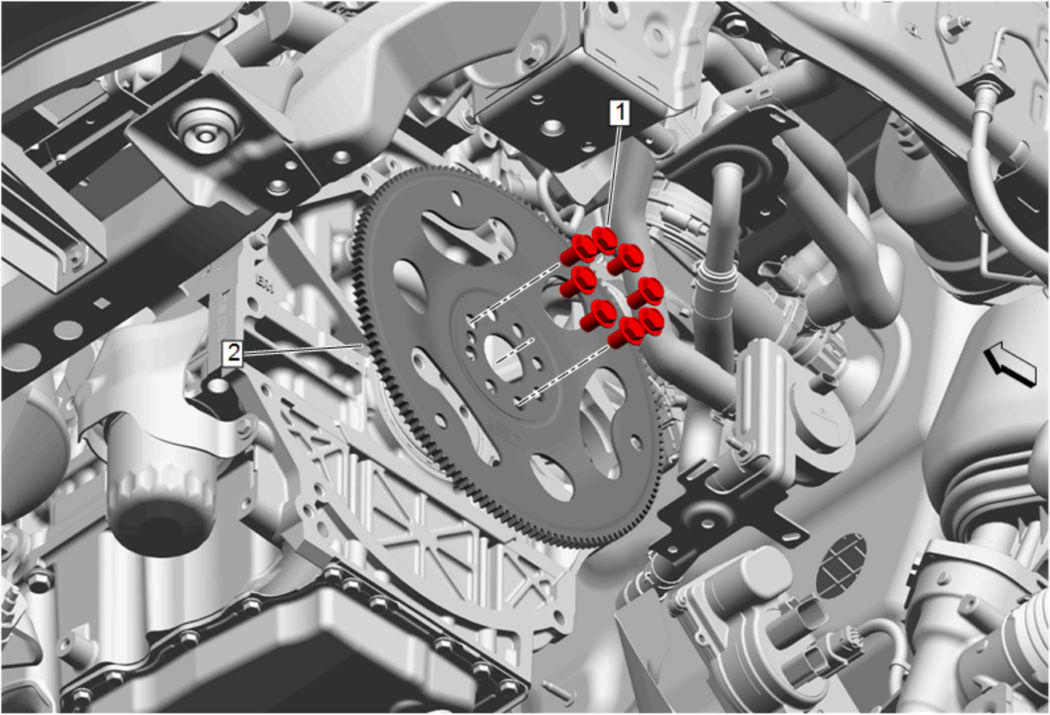

   Automatic Transmission Flex Plate Bolt (1) - Remove and DISCARD [8x]

4. Automatic Transmission Flex Plate (2) - Remove

5. Courtesy of GENERAL MOTORS COMPANY

   Remove the EN-50792  Holding tool (2).
