Automatic Transmission Flex Plate Removal

WARNING: This page is about a different variant/trim than selected.

Special Tools

EN-51760 Flywheel Holding Tool

For equivalent regional tools, refer to Special Tools .

Courtesy of GENERAL MOTORS COMPANY

To prevent crankshaft rotation, install EN-51760 holding tool (2) and starter motor bolts (1) at the starter motor location and engaging the flywheel.
Courtesy of GENERAL MOTORS COMPANY

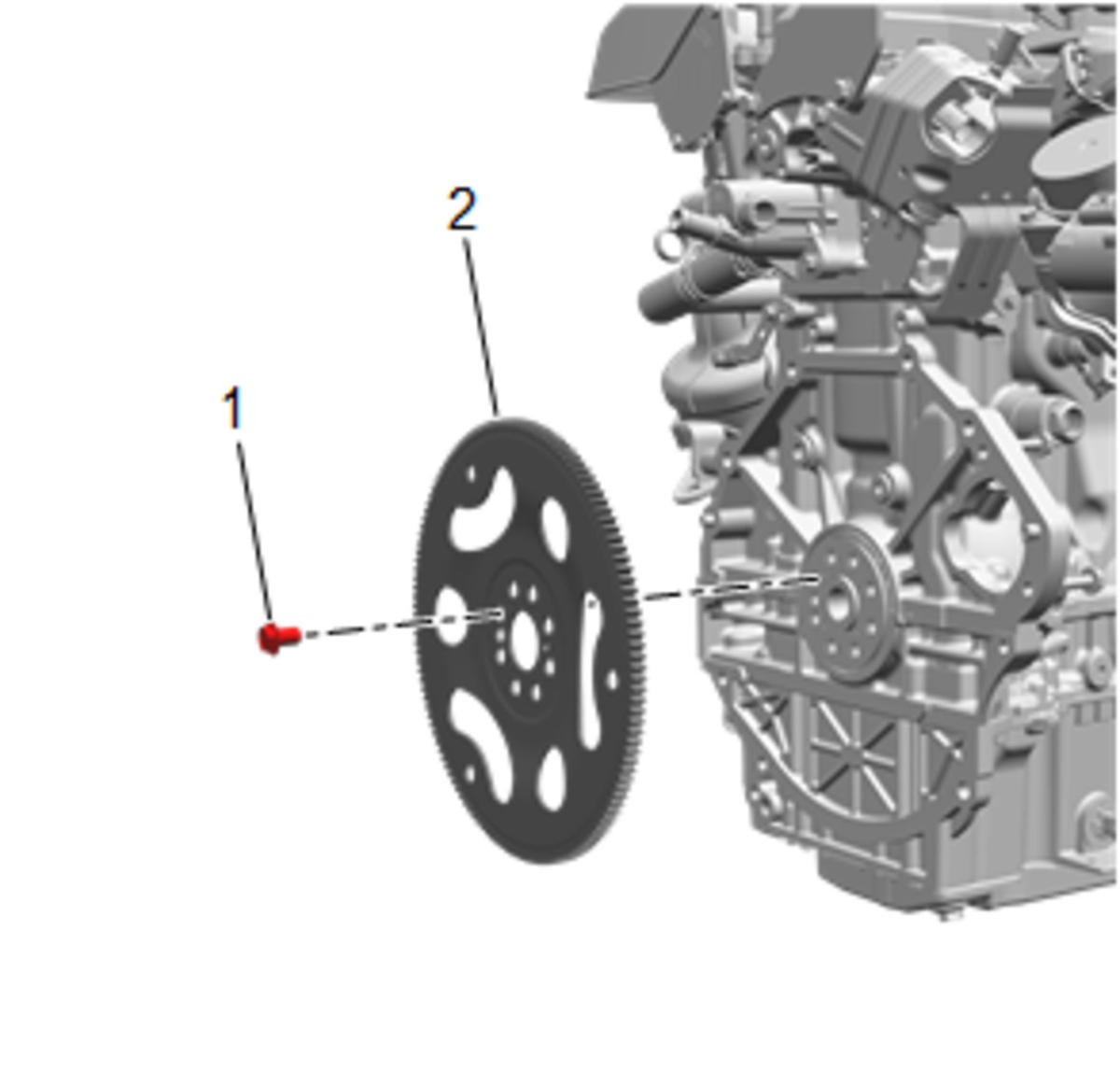

Remove and discard the flywheel attaching bolts (1).
Remove the flywheel (2).
Remove EN 51760 holding tool.
