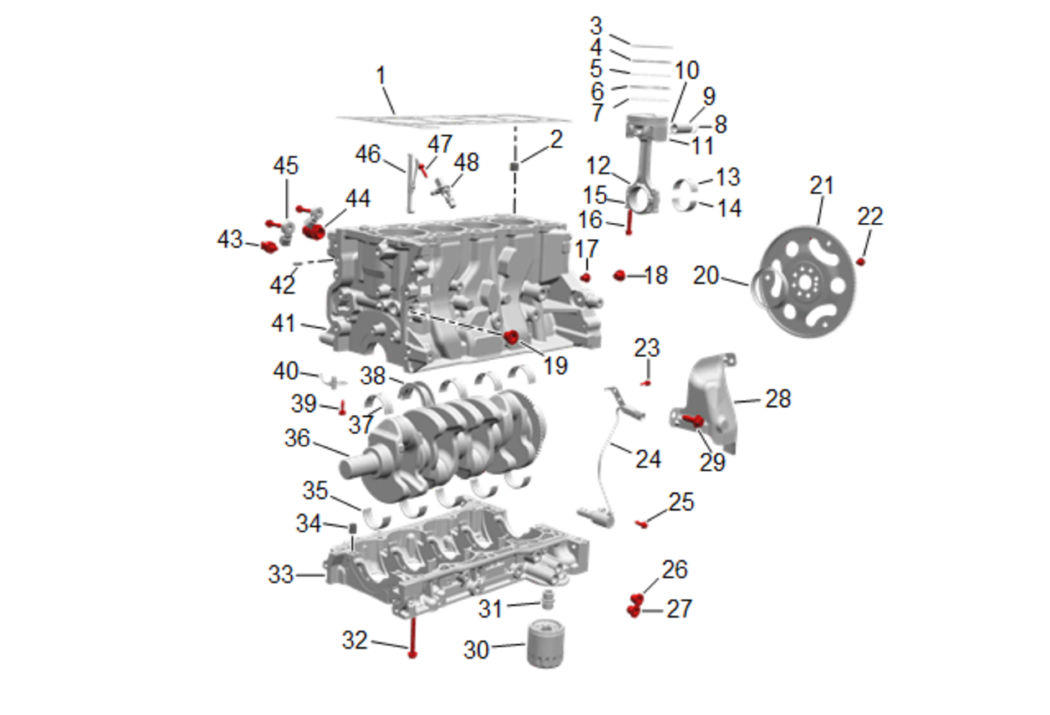

Engine Block and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Cylinder Head Gasket |
| 2 | Cylinder Head Locating Pin |
| 3 | Piston Upper Compression Ring |
| 4 | Piston Lower Compression Ring |
| 5 | Piston Oil Ring Rail |
| 6 | Piston Oil Ring Rail Spacer |
| 7 | Piston Oil Ring Rail |
| 8 | Piston Pin Retainer |
| 9 | Piston Pin |
| 10 | Piston Pin Retainer |
| 11 | Piston |
| 12 | Connecting Rod |
| 13 | Connecting Rod Bearing |
| 14 | Connecting Rod Bearing |
| 15 | Connecting Rod Cap |
| 16 | Connecting Rod Bolt |
| 17 | Engine Block Oil Gallery Plug |
| 18 | Engine Block Oil Gallery Plug |
| 19 | Engine Block Oil Gallery Plug |
| 20 | Crankshaft Rear Oil Seal |
| 21 | Automatic Transmission Flex Plate |
| 22 | Automatic Transmission Flex Plate Bolt |
| 23 | Oil Pump Flow Control Valve Assembly Bolt |
| 24 | Oil Pump Flow Control Valve Assembly |
| 25 | Oil Pump Flow Control Valve Assembly Bolt |
| 26 | Engine Block Oil Gallery Plug |
| 27 | Engine Block Oil Gallery Plug |
| 28 | Oil Pump and Compressor Heat Shield |
| 29 | Oil Pump and Compressor Heat Shield Bolt |
| 30 | Oil Filter |
| 31 | Oil Filter Fitting |
| 32 | Lower Crankcase Bolt |
| 33 | Lower Crankcase |
| 34 | Lower Crankcase Locating Pin |
| 35 | Crankshaft Lower Bearing |
| 36 | Crankshaft |
| 37 | Crankshaft Upper Bearing |
| 38 | Crankshaft Upper Thrust Bearing |
| 39 | Piston Oil Nozzle Bolt |
| 40 | Piston Oil Nozzle |
| 41 | Engine Block |
| 42 | Engine Front Cover Locating Pin |
| 43 | Engine Oil Pressure Sensor |
| 44 | Engine Coolant Heater |
| 45 | Knock Sensor |
| 46 | Engine Block Coolant Baffle |
| 47 | Crankshaft Position Sensor Bolt |
| 48 | Crankshaft Position Sensor |
