Cylinder Head and Components
WARNING: This page is about a different variant/trim than selected.

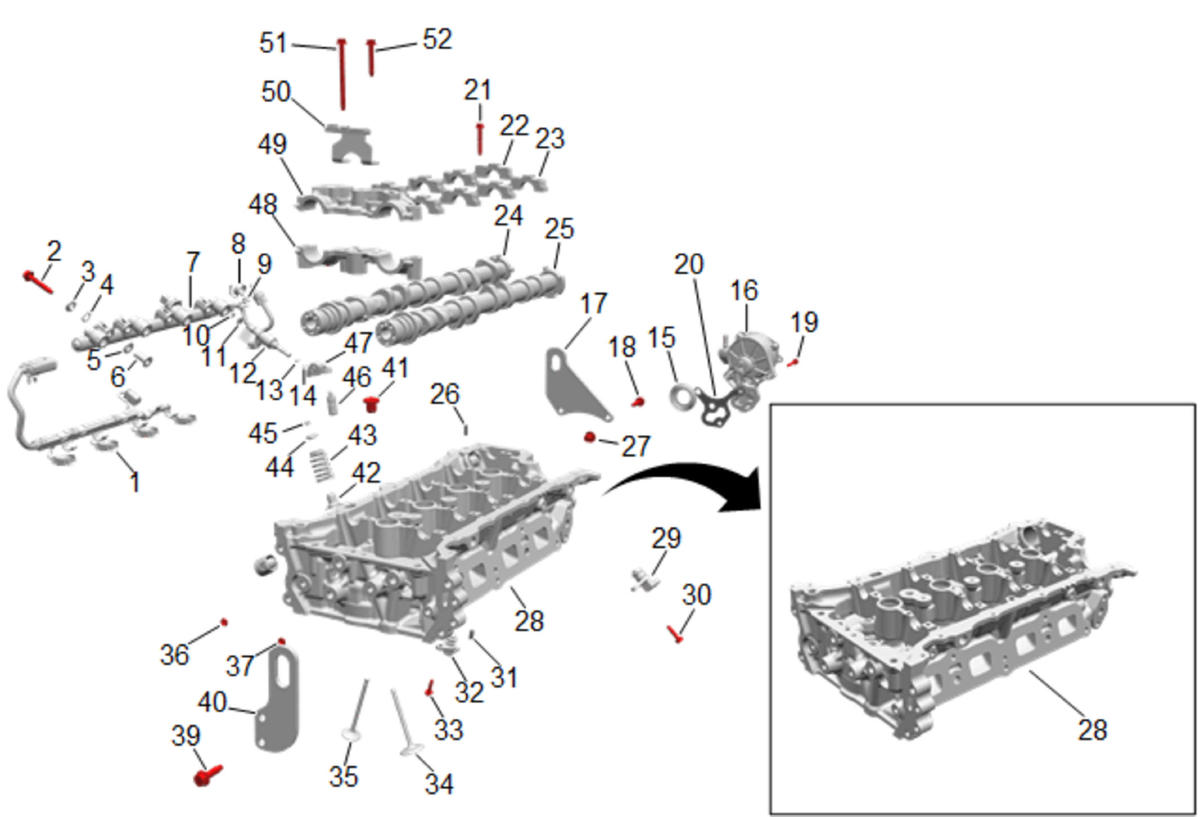

| Callout | Component Name |
|---|---|
| 1 | Fuel Injector Wiring Harness |
| 2 | Fuel Injection Fuel Rail Bolt |
| 3 | Fuel Rail Insulator Bushing |
| 4 | Fuel Rail Insulator Washer |
| 5 | Fuel Rail Insulator Washer |
| 6 | Fuel Rail Insulator Sleeve |
| 7 | Fuel Injection Fuel Rail |
| 8 | Fuel Injector Holding Clamp |
| 9 | Fuel Injector Retainer |
| 10 | Fuel Injection Fuel Rail O-Ring Seal |
| 11 | Fuel Injector Seal Spacer |
| 12 | Direct Fuel Injector Assembly |
| 13 | Fuel Injector Nozzle Housing Seal |
| 14 | Fuel Injector Nozzle Housing Seal |
| 15 | Vacuum Pump Seal |
| 16 | Vacuum Pump Assembly |
| 17 | Engine Rear Lift Bracket |
| 18 | Engine Rear Lift Bracket Bolt |
| 19 | Vacuum Pump Bolt |
| 20 | Vacuum Pump Gasket |
| 21 | Camshaft Bearing Cap Bolt |
| 22 | Camshaft Bearing Cap |
| 23 | Camshaft Bearing Cap |
| 24 | Intake Camshaft |
| 25 | Exhaust Camshaft |
| 26 | Cylinder Head Locating Pin |
| 27 | Cylinder Head Oil Gallery Plug |
| 28 | Cylinder Head |
| 29 | Camshaft Position Sensor |
| 30 | Camshaft Position Sensor Bolt |
| 31 | Cylinder Head Oil Gallery Restrictor |
| 32 | Camshaft Position Sensor |
| 33 | Camshaft Position Sensor Bolt |
| 34 | Intake Valve |
| 35 | Exhaust Valve |
| 36 | Cylinder Head Oil Gallery Plug |
| 37 | Cylinder Head Oil Gallery Plug |
| 38 | Engine Front Lift Bracket Bolt |
| 39 | Engine Front Lift Bracket |
| 40 | Valve Lifter Follower |
| 41 | Cylinder Head Core Hole Plug |
| 42 | Valve Stem Oil Seal |
| 43 | Valve Spring |
| 44 | Valve Spring Retainer |
| 45 | Valve Stem Key |
| 46 | Hydraulic Valve Lash Adjuster |
| 47 | Valve Rocker Arm |
| 48 | Camshaft Bearing Front Lower Cap |
| 49 | Camshaft Bearing Front Cap |
