Camshaft Cover and Components
WARNING: This page is about a different variant/trim than selected.

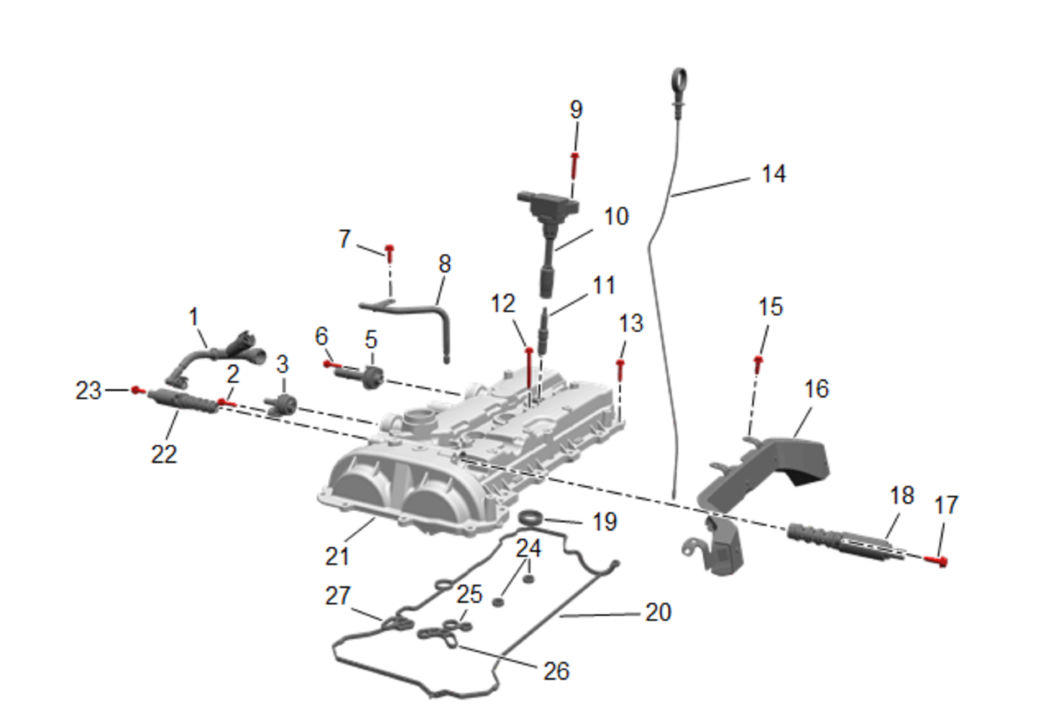

| Callout | Component Name |
|---|---|
| 1 | PCV Tube Assembly |
| 2 | PCV Valve Bolt |
| 3 | PCV Valve |
| 4 | Camshaft Cover Plug |
| 5 | PCV Valve |
| 6 | Engine Coolant Air Bleed Pipe Bolt |
| 7 | PCV Valve Bolt |
| 8 | Engine Coolant Air Bleed Pipe |
| 9 | Ignition Coil Bolt |
| 10 | Ignition Coil |
| 11 | Spark Plug |
| 12 | Camshaft Cover Bolt |
| 13 | Camshaft Cover Bolt |
| 14 | Oil Level Indicator |
| 15 | Camshaft Housing Cover Heat Shield Bolt |
| 16 | Camshaft Housing Cover Heat Shield |
| 17 | Camshaft Position Actuator Control Solenoid Valve Bolt - Exhaust |
| 18 | Camshaft Position Actuator Control Solenoid Valve - Exhaust |
| 19 | Spark Plug Shield Seal |
| 20 | Camshaft Cover Gasket |
| 21 | Camshaft Cover |
| 22 | Camshaft Position Actuator Control Solenoid Valve - Intake |
| 23 | Camshaft Position Actuator Control Solenoid Valve Bolt - Intake |
| 24 | Camshaft Cover Inner Gasket |
| 25 | Camshaft Cover Inner Gasket |
| 26 | Exhaust Camshaft Cover Gasket |
