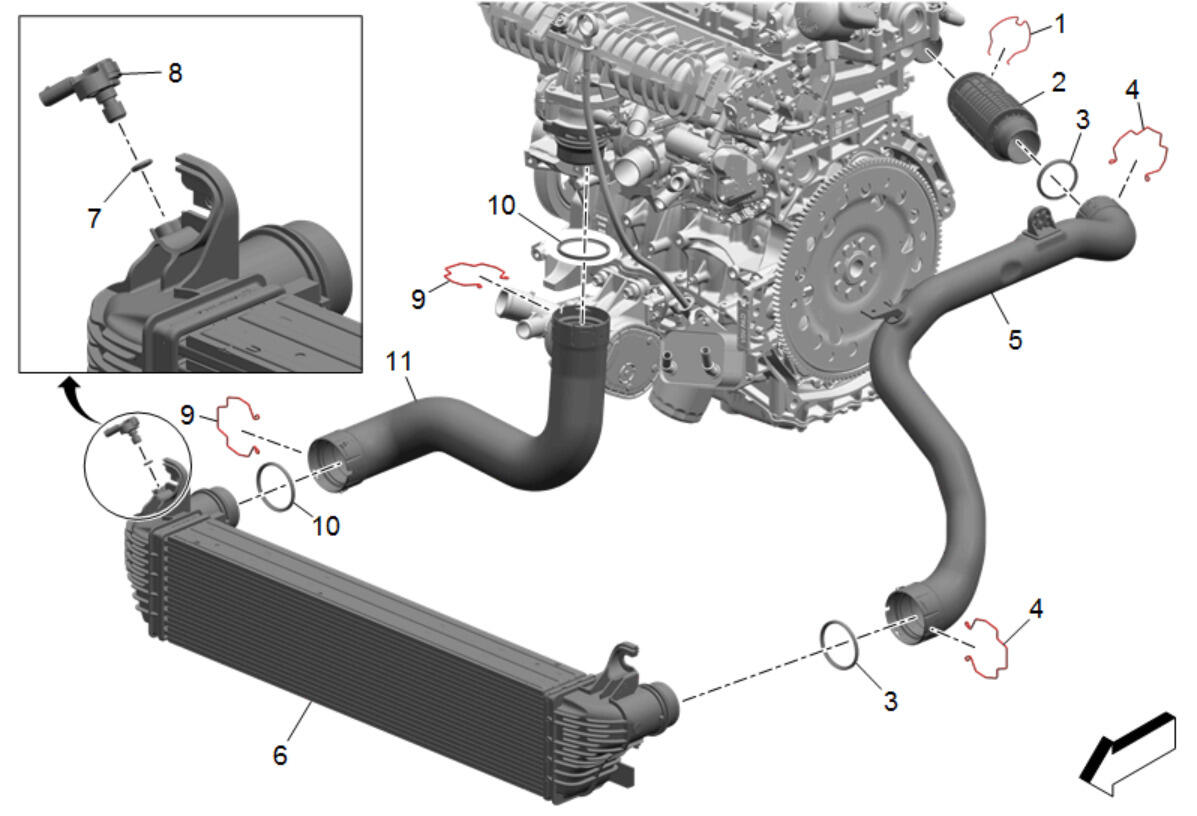

Charge Air Cooler System
| Callout | Component Name |
|---|---|
| 1 | Turbocharger Outlet Duct Retainer |
| 2 | Turbocharger Outlet Duct |
| 3 | Charge Air Cooler Inlet Duct O-ring Seal |
| 4 | Charge Air Cooler Inlet Duct Retainer |
| 5 | Charge Air Cooler Inlet Duct |
| 6 | Charge Air Cooler Assembly |
| 7 | Turbocharger Air Pressure Sensor O-ring |
| 8 | Turbocharger Air Pressure Sensor - B111 Turbocharger Boost Sensor |
| 9 | Charge Air Cooler Outlet Duct Retainer |
| 10 | Charge Air Cooler Outlet Duct O-ring Seal |
| 11 | Charge Air Cooler Outlet Duct |
The turbocharger intake system is supported by an air-to-air charge air cooler (CAC) system, which uses fresh air drawn through a heat exchanger to reduce the temperature of the hot compressed air exiting the turbo compressor, prior to delivery to the engine combustion system. Inlet air temperature can be reduced by up to 100°C (180°F), which enhances performance. This is due to the higher density of oxygen in the cooled air, which promotes optimal combustion. The charge air cooler is connected to the turbocharger and to the throttle body by flexible ductwork that requires the use of special high torque fastening clamps. In order to prevent any type of air leak when servicing the ductwork, the tightening specifications, cleanliness and proper positioning of the clamps is critical, and must be strictly adhered to.
