Section 1 (Engine Mechanical - 2.0L (LSY))
>>
Schematic Wiring Diagrams
>>
Engine Mechanical Wiring Schematics
>>

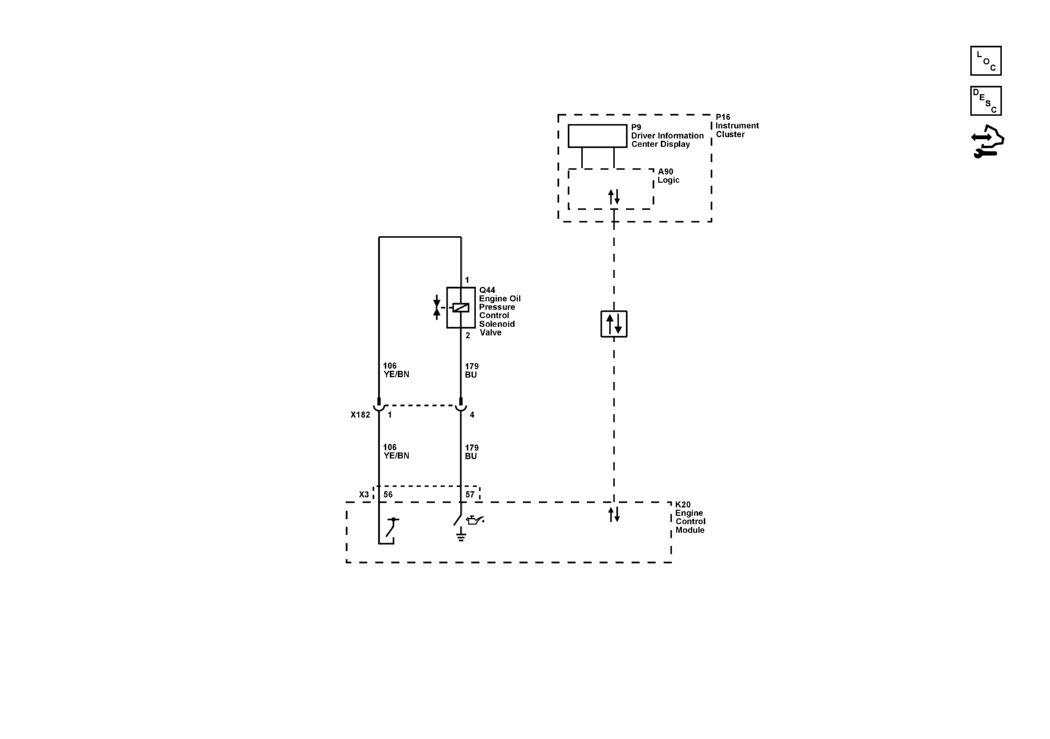

Oil Pressure Control (LSY)
Oil Pressure Control (LSY)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
