Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Camshaft Carrier - Remove - Camshaft Carrier Replacement
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Many internal engine components will develop specific wear patterns on their friction surfaces.
- Components MUST be separated, marked, or organized in a way to ensure installation to their original location and position. Take precautions in order to prevent interchanging of parts.
- Tag or mark each part immediately when removed. Indicate location, direction, or orientation when necessary.

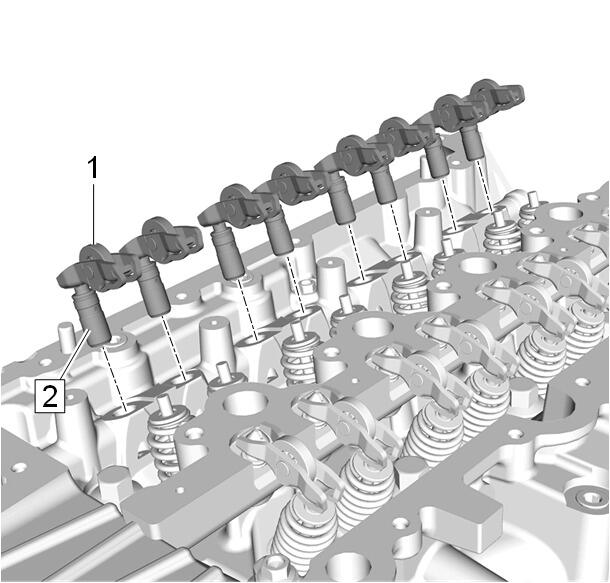

Remove the 8 intake valve rocker arms (1) with hydraulic valve lash adjuster (2).
Courtesy of GENERAL MOTORS COMPANY

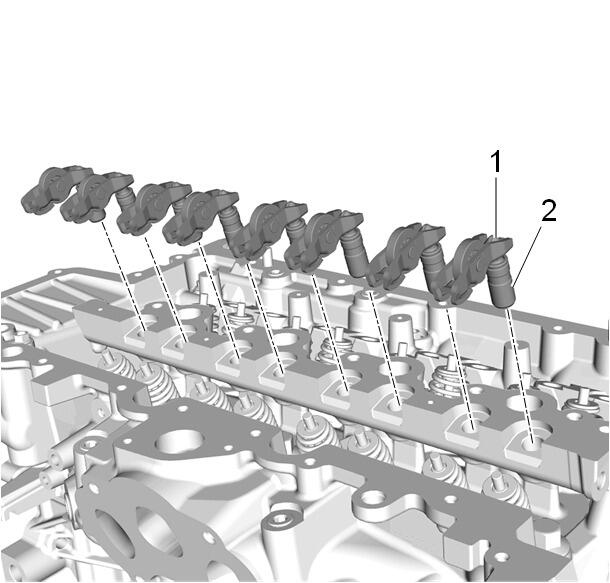

Remove the 8 exhaust valve rocker arms (1) with hydraulic valve lash adjuster (2).
Courtesy of GENERAL MOTORS COMPANY

Valve Rocker Arm (1) @ Hydraulic Valve Lash Adjuster (2) - Remove [16x]
