Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

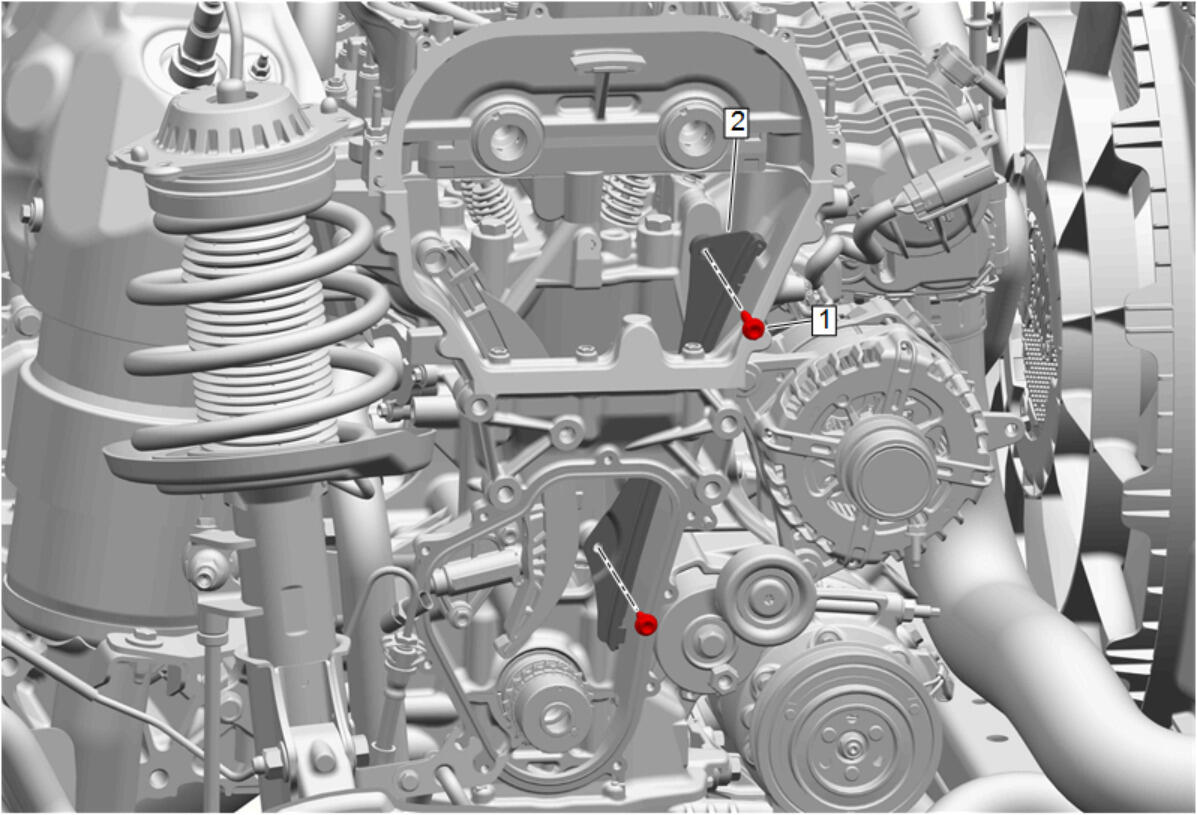

Timing Chain Guide (2) - Install

CAUTION:

Refer to Fastener Caution .

Timing Chain Guide Bolt (1) - Install [2x] 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

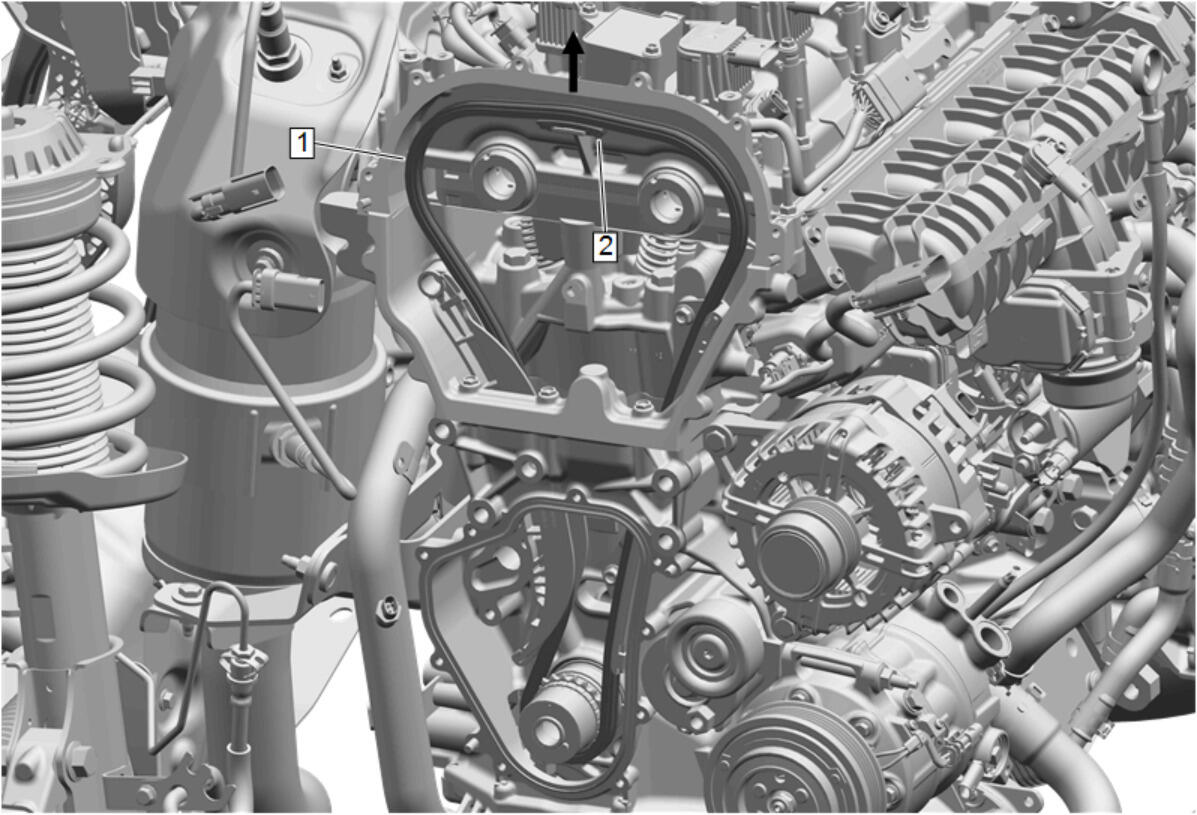

Camshaft Timing Chain (1) - Install - Camshaft Timing Chain Replacement
