Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Air Conditioning Compressor - Remove - Air Conditioning Compressor Replacement (LSY)
  2. Water Pump - Remove - Electric Engine Coolant Pump Replacement

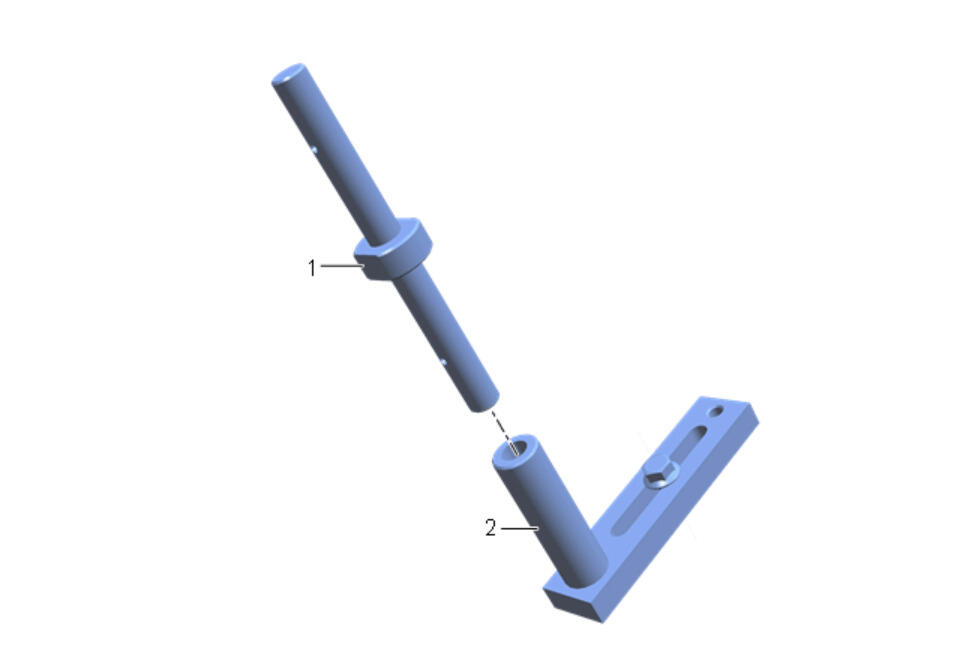

  3. GM5084615Courtesy of GENERAL MOTORS COMPANY

    EN-52055-2  Double Spindle (1) @ EN-52055-1  Stand Tube (2) - Install [5x]

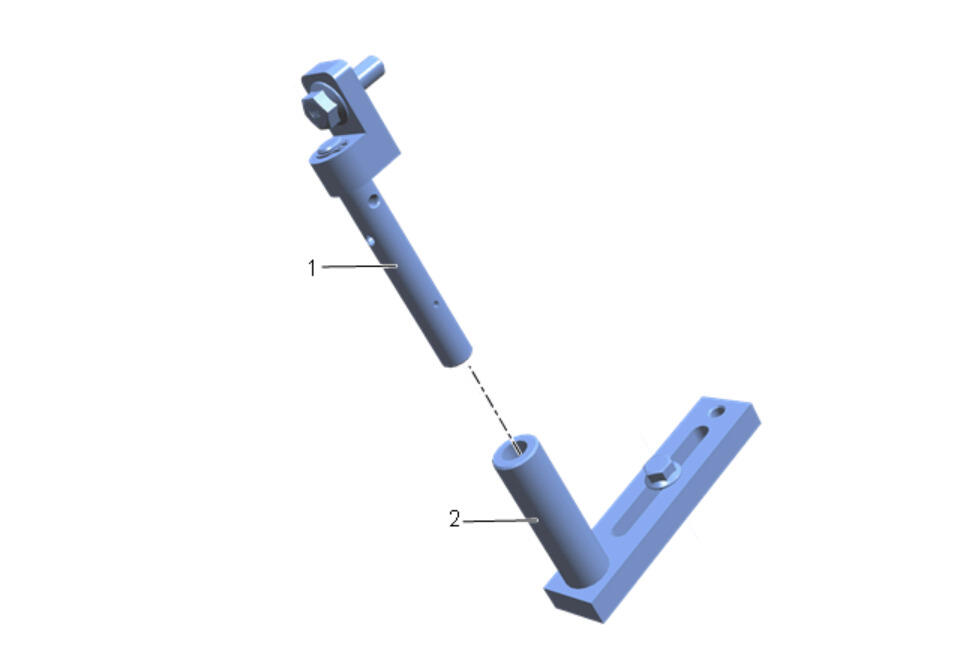

  4. GM5084634Courtesy of GENERAL MOTORS COMPANY

    EN-52055-9  Torque Support (1) @ EN-52055-1  Stand Tube (2) - Install

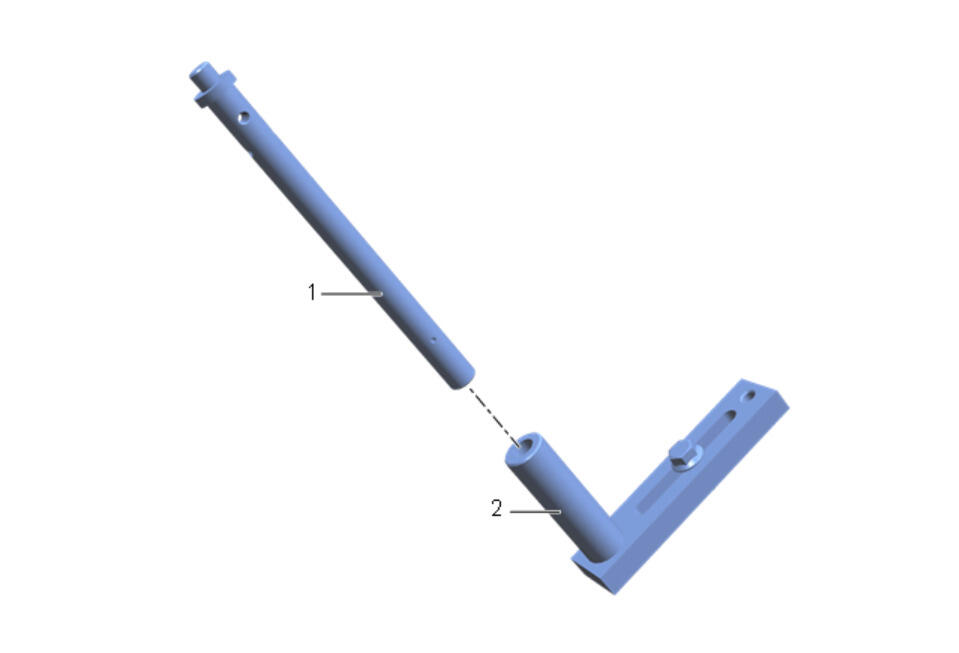

  5. GM5084718Courtesy of GENERAL MOTORS COMPANY

    EN-52055-6  Thread Bar (1) @ EN-52055-1  Stand Tube (2) - Install

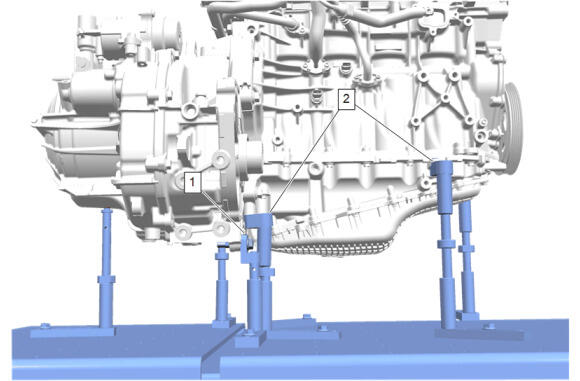

  6. GM5694217Courtesy of GENERAL MOTORS COMPANY

    EN-52055-9  Torque Support (1) @ Automatic Transmission - Install

  7. Install the EN-52055-5  Flexible Support Tube (2) onto the EN-52055-2  Double Spindle / EN-52055-1  Stand Tube assembly [2x].
    1. Install the support assemblies onto the GE-52200  Propulsion System Lift Table aligned to the bores in the lower crankcase extension as shown [2x].

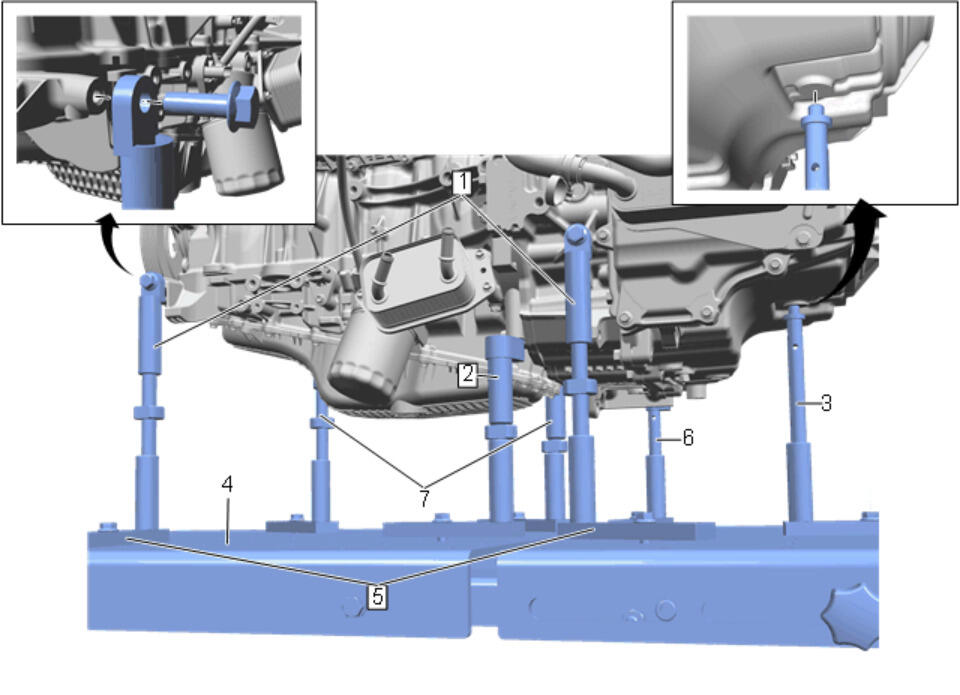

  8. Fig 1: Identifying Propulsion System Lift Table Components
    GM5083899Courtesy of GENERAL MOTORS COMPANY

    Install the EN-52055-4  Support Tube (1) onto the EN-52055-2  Double Spindle / EN-52055-1  Stand Tube assembly [2x].

    1. Install the support assemblies onto the lower crankcase extension and automatic transmission as shown.
  9. Install the EN-52055-5  Flexible Support Tube (2) onto the EN-52055-2  Double Spindle / EN-52055-1  Stand Tube assembly.
    1. Install the support assembly onto the GE-52200  Propulsion System Lift Table (4) aligned to the bore in the lower crankcase extension as shown.
  10. Install the EN-52055-6  Thread Bar (3) / EN-52055-1  Stand Tube assembly to the GE-52200  Propulsion System Lift Table (4) aligned to support the automatic transmission as shown.
  11. WARNING:

    The GE-52200-50 lift table limiting chain is for use with GE-52200 lifting tables not equipped with a mechanical stop. Refer to the operating instructions provided with the limiting chain. Failure to limit uncontrolled descent of the lifting table may result in damage and/or personal injury.

  12. Raise the GE-52200  Propulsion System Lift Table (4) until:
    1. EN-52055-1  Stand Tube (5) attached to the powertrain assembly with EN-52055-4  Support Tube (1) [2x] and EN-52055-8  Torque Support (6) meet the GE-52200  Propulsion System Lift Table (4).
    2. EN-52055-5  Flexible Support Tube (2, 7) [3x], and EN-52055-6  Thread Bar (3) are inserted into and support the powertrain assembly as shown.
  13. Bolt the EN-52055-1  Stand Tube attached to the powertrain assembly with EN-52055-4  Support Tube (1) [2x] and EN-52055-8  Torque Support (6) to the GE-52200  Propulsion System Lift Table (4).
  14. Refer to Engine Replacement (FWD) , or Engine Replacement (AWD)  to complete the engine replacement procedure.
