Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Clean all sealing surfaces.
Courtesy of GENERAL MOTORS COMPANY

Positive Crankcase Ventilation Oil Separator Gasket (2) - Install NEW

NOTE:

Check that the 2 pins (1) from the positive crankcase ventilation oil separator are in the right holes.

Positive Crankcase Ventilation Oil Separator (3) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

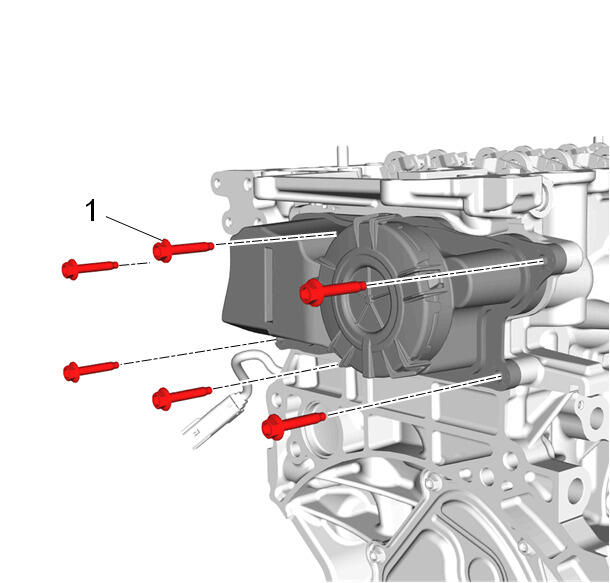

Positive Crankcase Ventilation Oil Separator Bolt (1) - Install and tighten [6x] 8.5 N.m (75 lb in)
Courtesy of GENERAL MOTORS COMPANY

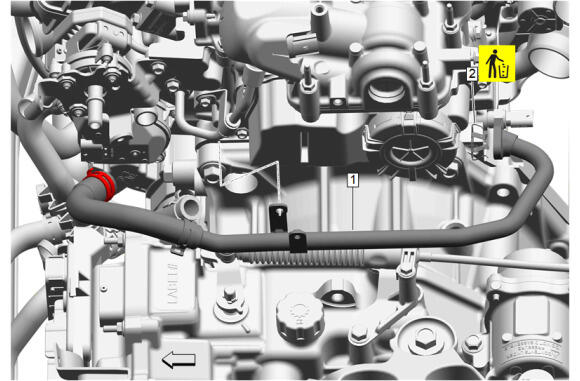

Engine Coolant Air Bleed Pipe (1) - Install - Engine Coolant Air Bleed Pipe Replacement (LSY)
Charge Air Cooler Inlet Air Tube - Install - Charge Air Cooler Inlet Air Tube Replacement
