Installation Procedure

WARNING: This page is about a different variant/trim than selected.

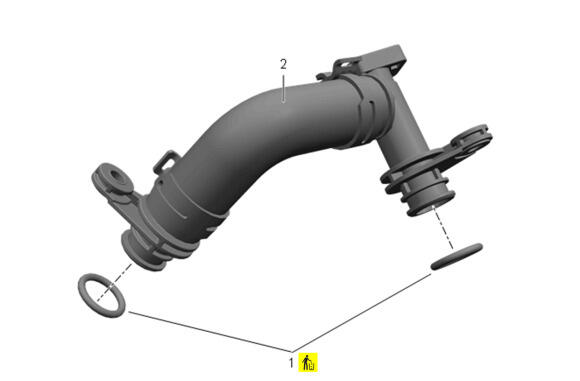

  1. GM5084572Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Hose Fitting Seal (1) @ Positive Crankcase Ventilation Hose (2) - Install NEW [2x]

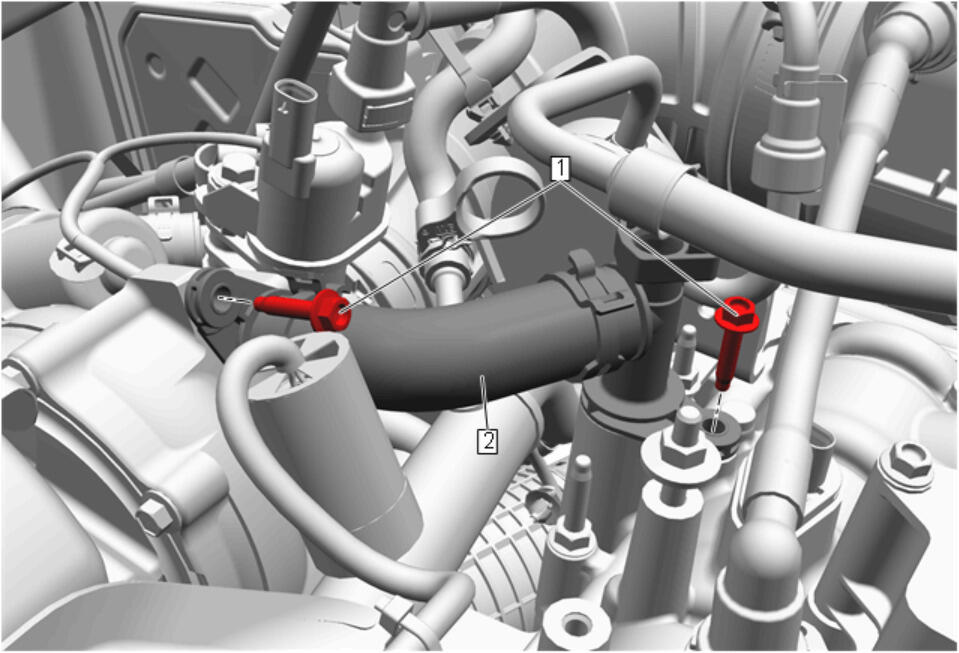

  2. GM5084570Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Hose (2) - Install

  3. Positive Crankcase Ventilation Hose Connector Bolt (1) - Install and tighten [2x] 8.5 N.m (75 lb in)

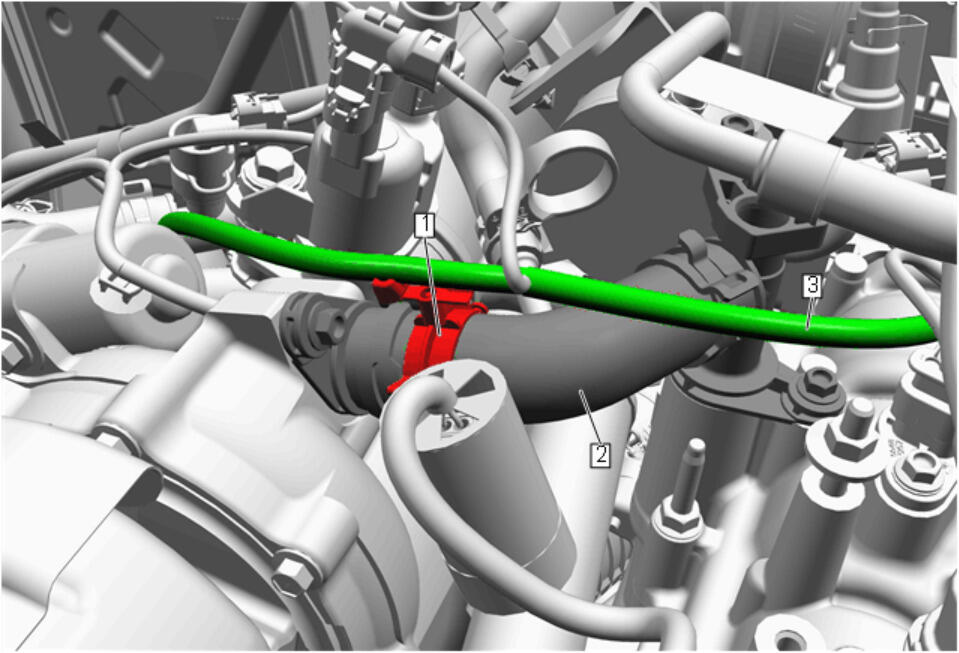

  4. GM5084569Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness (3) - Reposition

  5. Retainer (1) @ Positive Crankcase Ventilation Hose (2) - Install
  6. Crankcase Pressure Sensor - Install - Crankcase Pressure Sensor Replacement
