Removal Procedure

WARNING: This page is about a different variant/trim than selected.

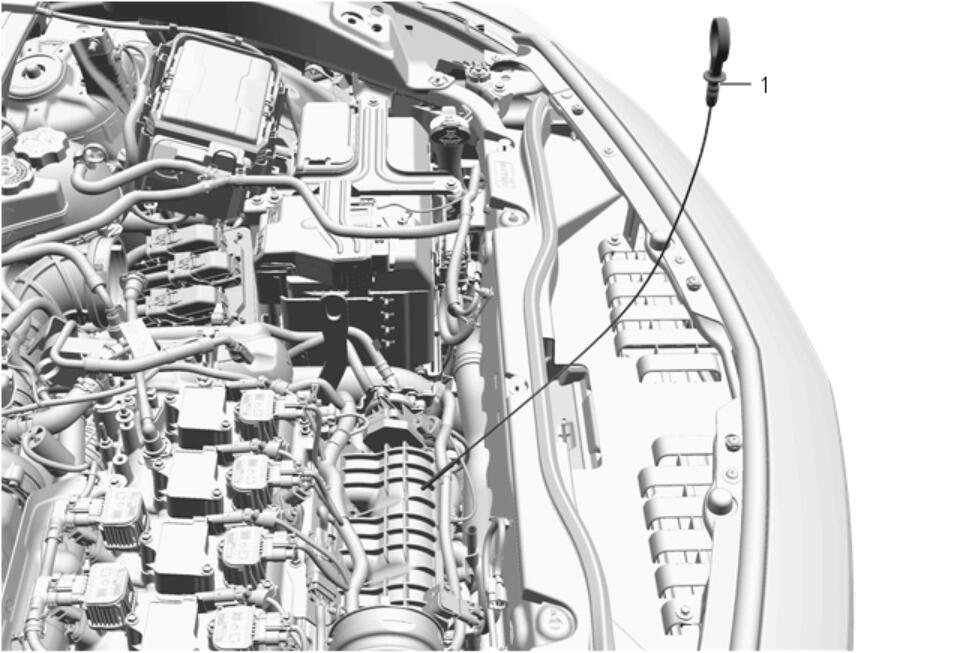

  1. GM5085951Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator (1) - Remove

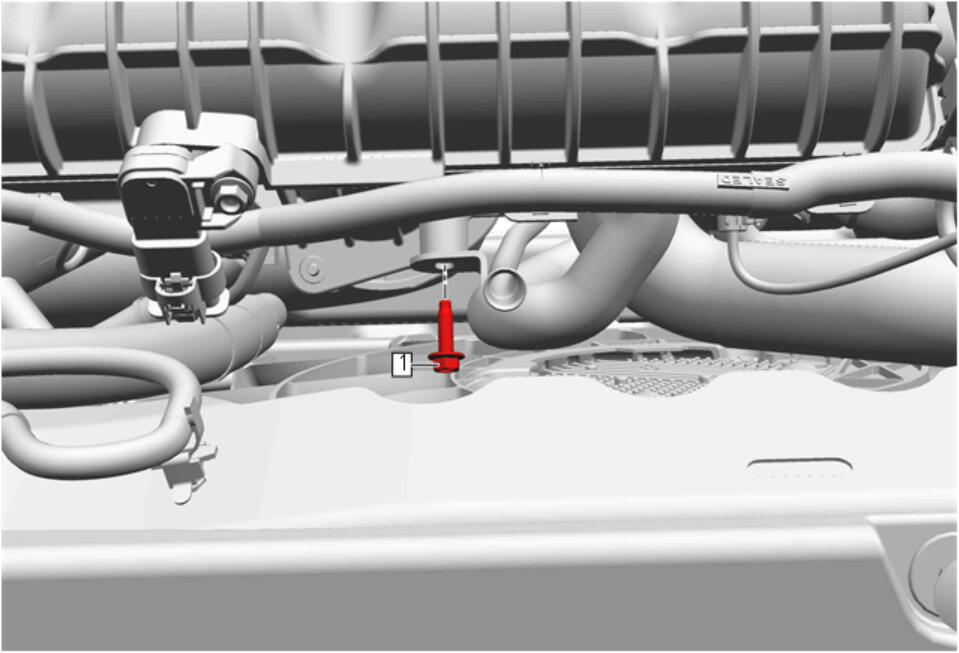

  2. GM5085952Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube Bracket Bolt (1) - Remove

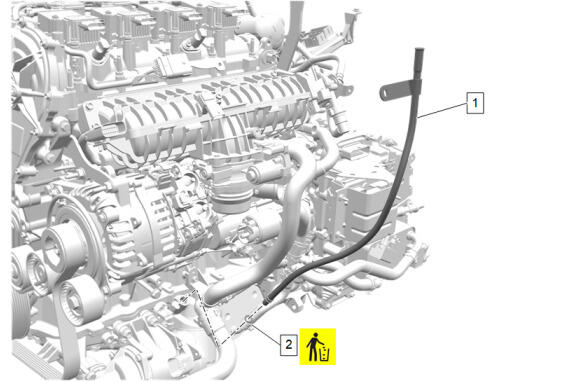

  3. GM5719662Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (1) - Remove

  4. Oil Level Indicator Tube O-Ring (2) - Remove and DISCARD
