Balancer Shaft Housing Inspection

WARNING: This page is about a different variant/trim than selected.

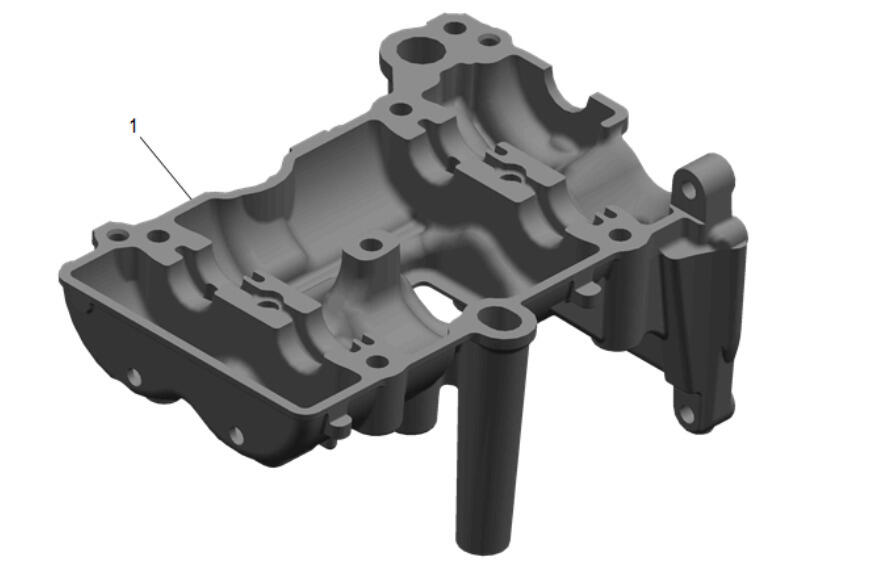

  1. GM5028684Courtesy of GENERAL MOTORS COMPANY

    Clean the balancer shaft housing (1).

  2. Inspect the balancer shafts journals appear to be scored or damaged.
  3. Inspect all threaded and through holes for damage or excessive debris.
