Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- NOTE:
Used valve rocker arms must be returned to the original position on the camshaft. If the camshaft is being replaced, the lash adjuster arms actuated by the camshaft must also be replaced.
Valve Rocker Arm (1) @ Hydraulic Valve Lash Adjuster (2) - Install [16x]
- Lubricate all valvetrain components with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers

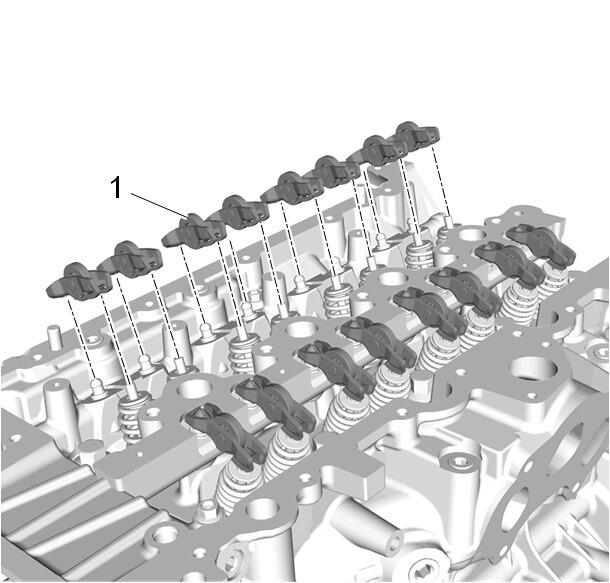

Valve Rocker Arm (1) - Install [16x]
- Camshaft Carrier - Install - Camshaft Carrier Replacement
