Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

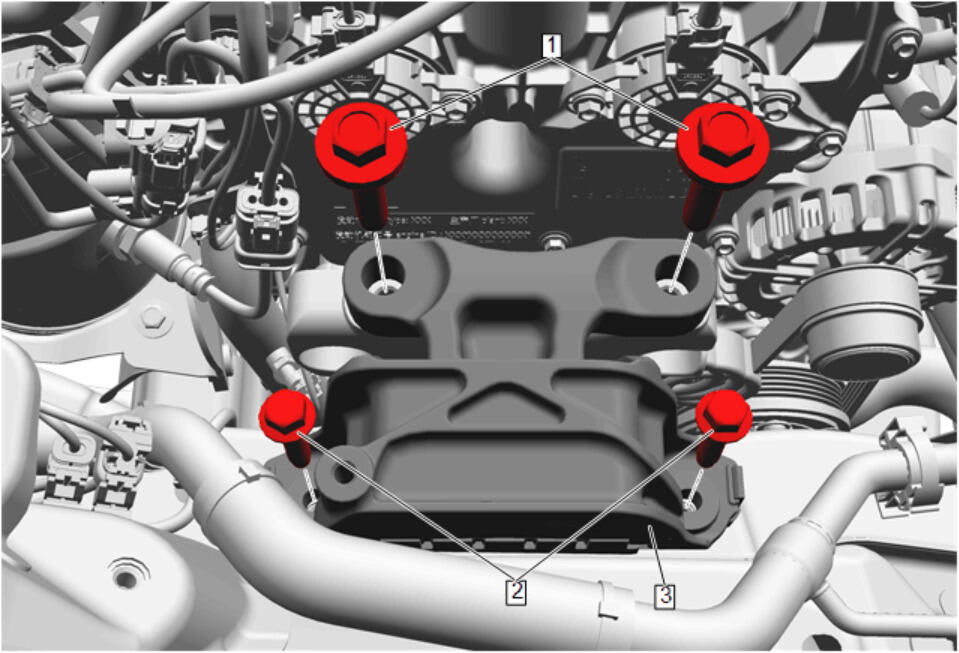

Engine Mount (3) - Remove - Engine Mount Replacement
Use the engine support fixture to raise the front of the engine enough to allow the engine mount bracket bolts to clear the frame.
Courtesy of GENERAL MOTORS COMPANY

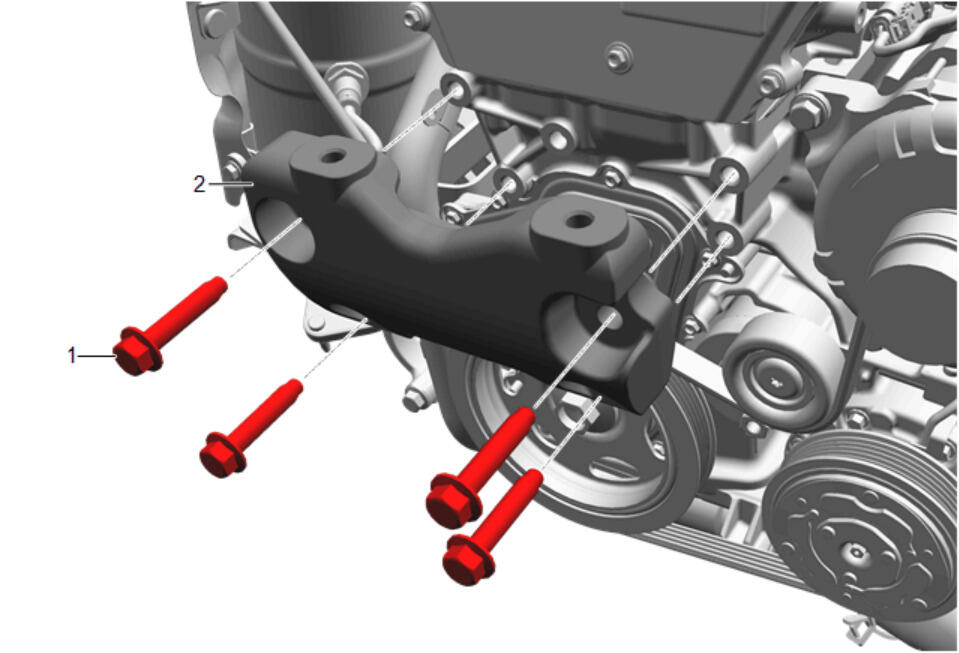

Engine Mount Bracket Bolt (1) - Remove [4x]
Engine Mount Bracket (2) - Remove
