Engine Block Disassemble Procedure

WARNING: This page is about a different variant/trim than selected.

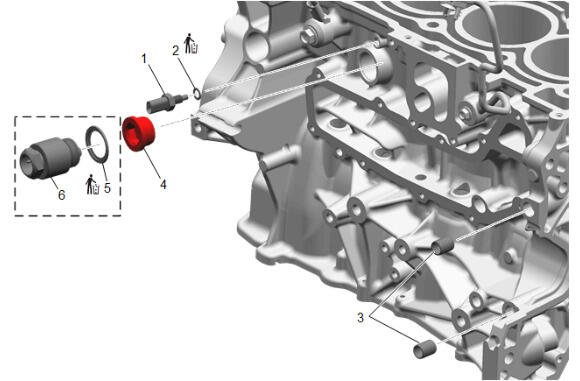

  1. GM5028801Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Temperature Sensor (1) - Remove

  2. Engine Coolant Temperature Sensor Seal (2) - Remove and DISCARD
  3. Starter Locating Pin (3) - Remove [2x]

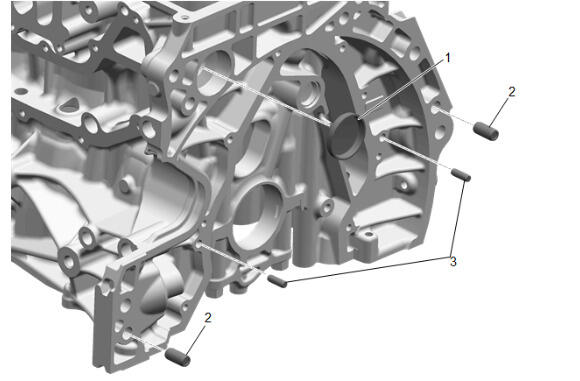

  4. GM5028816Courtesy of GENERAL MOTORS COMPANY

    Engine Block Core Hole Plug (1) - Remove

  5. Guide Pin (2, 3) - Remove [4x]

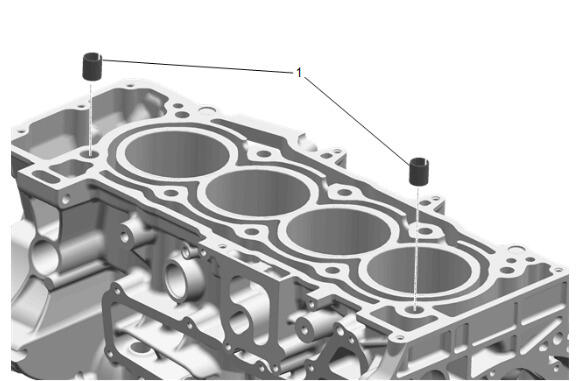

  6. GM5028818Courtesy of GENERAL MOTORS COMPANY

    Cylinder Head Locating Pin (1) - Remove [2x]

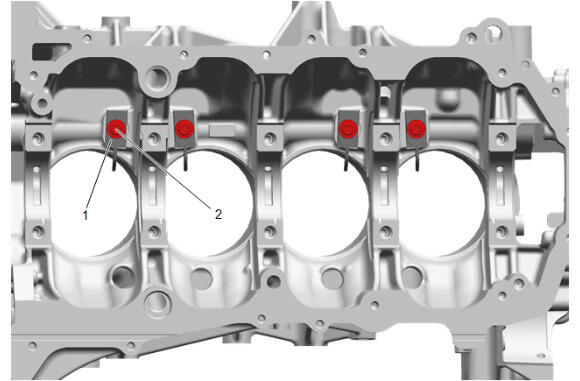

  7. GM5028819Courtesy of GENERAL MOTORS COMPANY

    Piston Oil Nozzle Bolt (2) - Remove [4x]

  8. Piston Oil Nozzle (1) - Remove [4x]

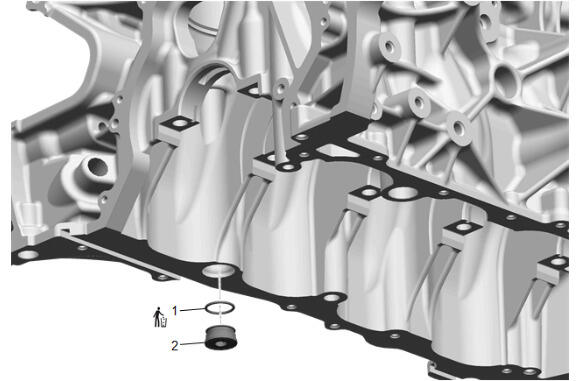

  9. GM5028823Courtesy of GENERAL MOTORS COMPANY

    Oil Flow Check Valve (2) - Remove

  10. Oil Flow Check Valve Seal (1) - Remove and DISCARD
