Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

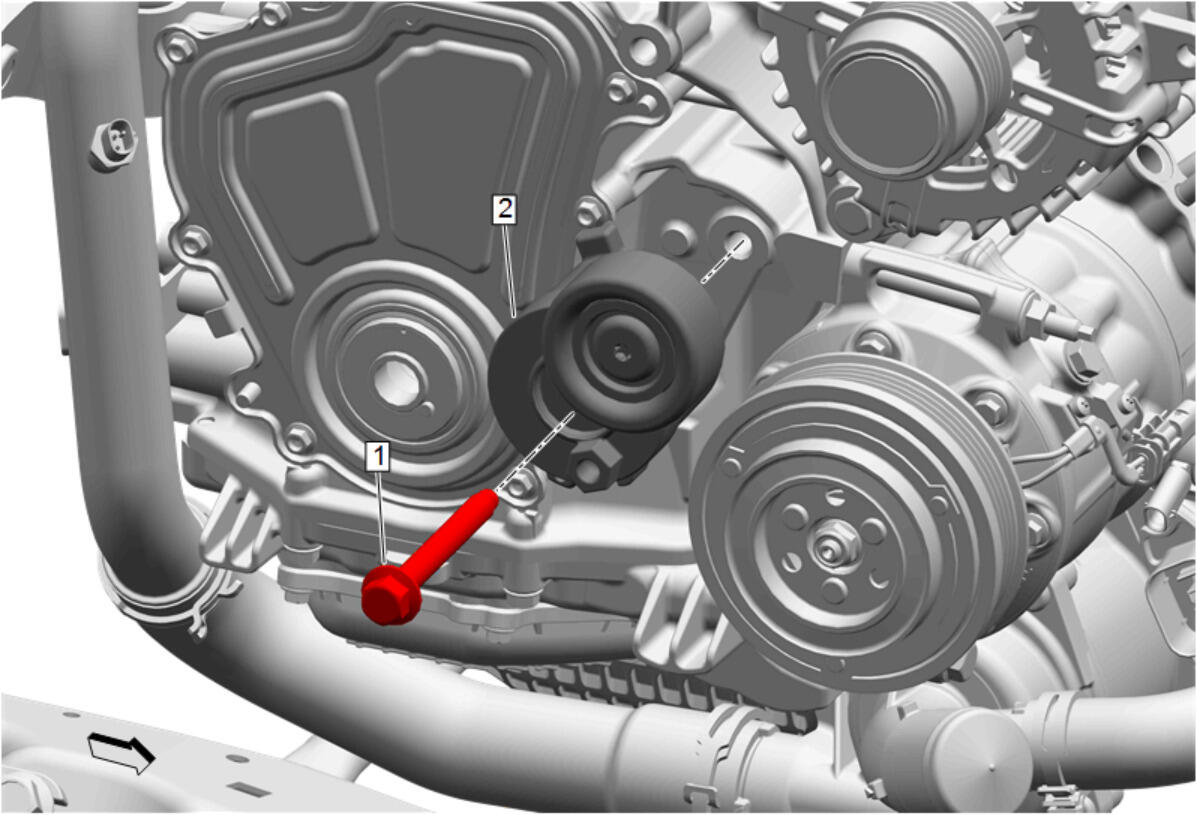

Drive Belt Tensioner (2) - Install

CAUTION:

Refer to Fastener Caution .

Drive Belt Tensioner Bolt (1) - Install and tighten 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Crankshaft Balancer (1) - Install - Crankshaft Balancer Replacement
