Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Clean all sealing surfaces.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Check that the 2 guide pins are seated correctly in the cylinder head.

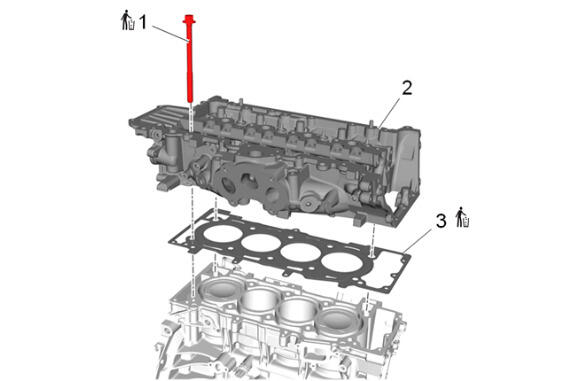

Cylinder Head Gasket (3) - Install NEW
Cylinder Head (2) - Install
Cylinder Head Bolt (1) - Install NEW and hand tighten [10x]
Courtesy of GENERAL MOTORS COMPANY

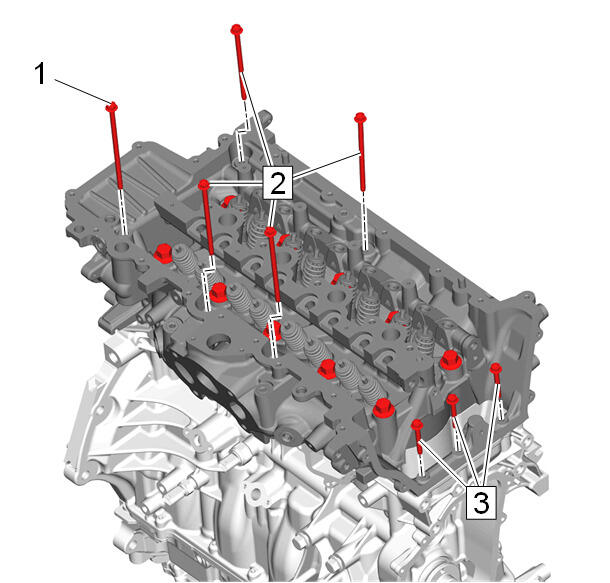

NOTE:
Ensure the correct bolt length is used in the correct location.

Cylinder Head Bolt (1, 2, 3) - Install and hand tighten (M6) [8x]

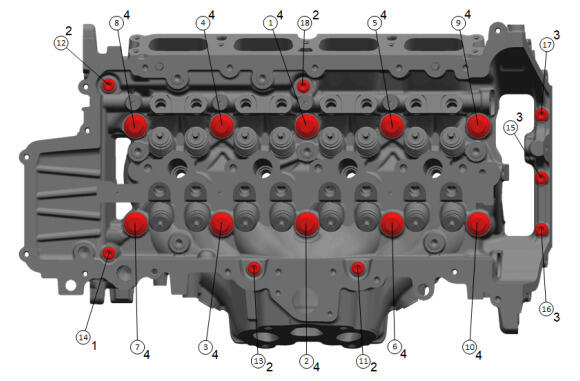

Fig 1: Identifying Cylinder Head Bolts With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

CAUTION:
Torque-to-Yield Fastener Caution

Cylinder Head Bolt - Tighten in the sequence shown. [18x]
1. Cylinder Head Bolt (1 - 10) - First Pass: 30 N.m (22 lb ft)
2. Cylinder Head Bolt (11 - 18) Tighten - 15 N.m (11 lb ft)
3. Cylinder Head Bolt (1 - 10) - Final Pass: 190 degrees - Using EN-45059 Angle Meter
Courtesy of GENERAL MOTORS COMPANY

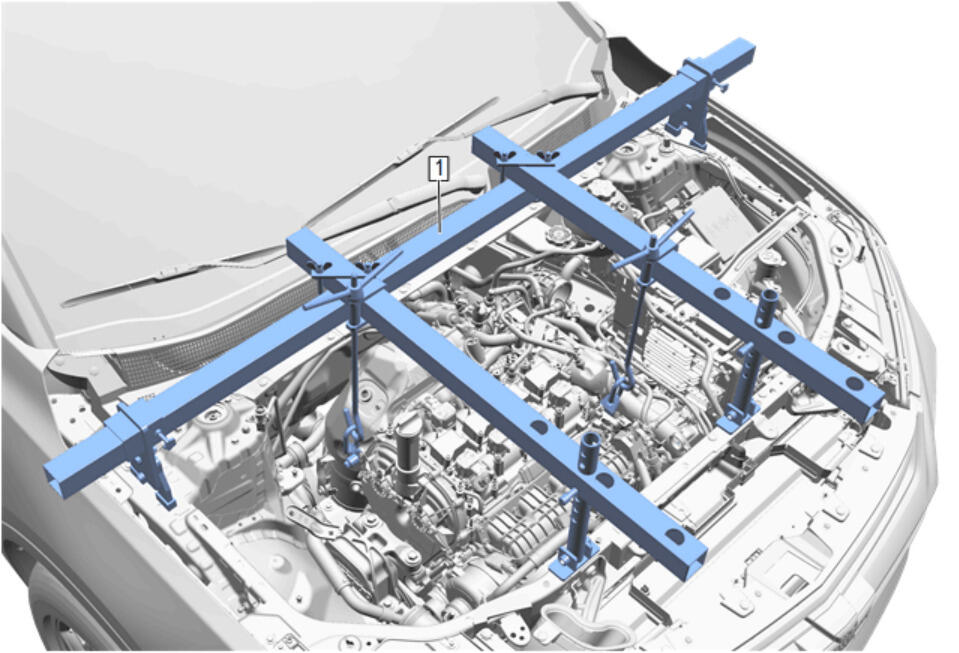

Engine Support Fixture (1) @ Cylinder Head - Install - Engine Support Fixture
Courtesy of GENERAL MOTORS COMPANY

Engine Mount (3) - Remove - Engine Mount Replacement
Courtesy of GENERAL MOTORS COMPANY

Engine Mount Bracket (2) - Remove - Engine Mount Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Positive Crankcase Ventilation Oil Separator (3) - Install - Positive Crankcase Ventilation Oil Separator Replacement
Courtesy of GENERAL MOTORS COMPANY

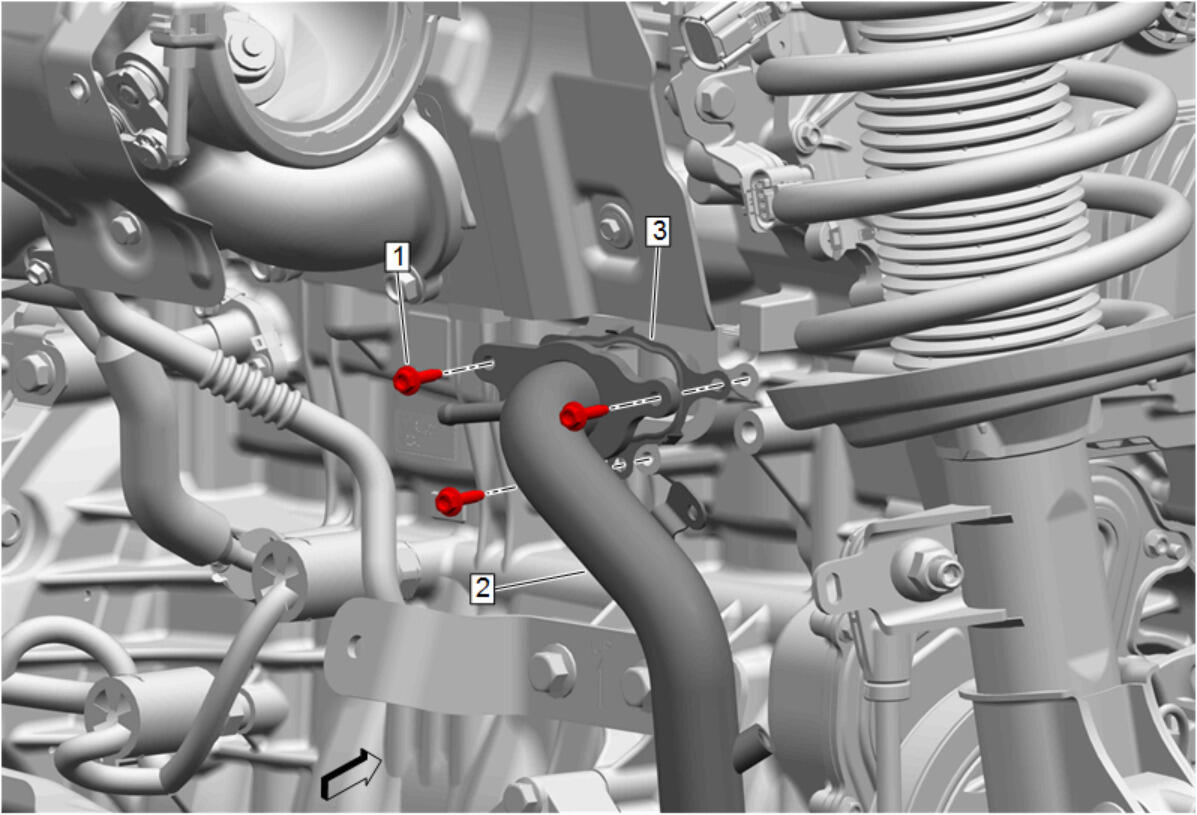

Engine Coolant Thermostat Housing Inlet Pipe (2) - Install - Engine Coolant Thermostat Housing Inlet Pipe Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

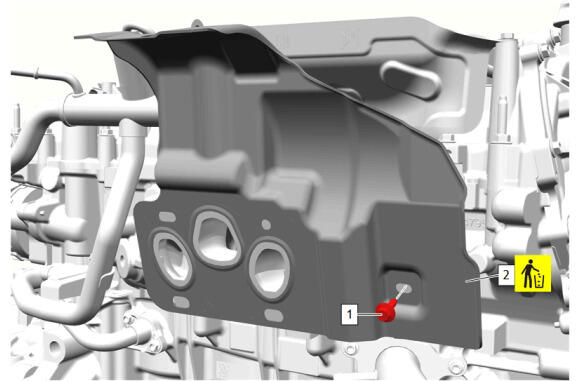

Turbocharger Heat Shield (2) - Install - Turbocharger Heat Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

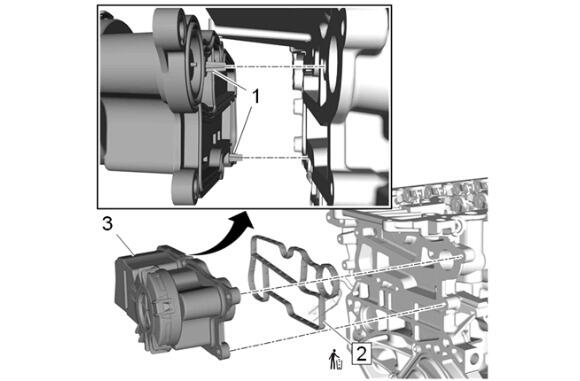

Evaporative Emission Canister Purge Pump (2) - Install - Evaporative Emission Canister Purge Pump Replacement
Courtesy of GENERAL MOTORS COMPANY

Direct Fuel Injection Fuel Rail (2) - Install - Fuel Injection Fuel Rail Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold (1) - Install - Intake Manifold Replacement
Courtesy of GENERAL MOTORS COMPANY

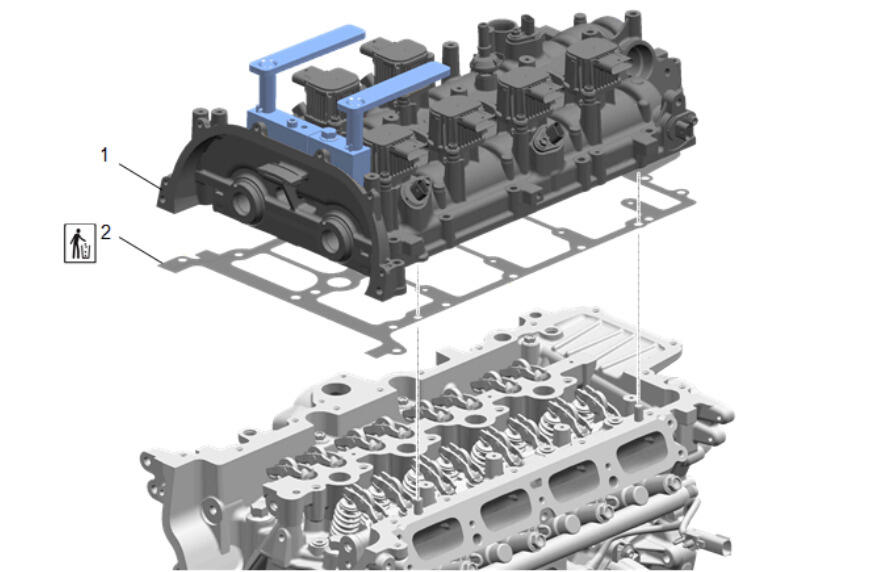

Camshaft Carrier (1) - Install - Camshaft Carrier Replacement
Courtesy of GENERAL MOTORS COMPANY

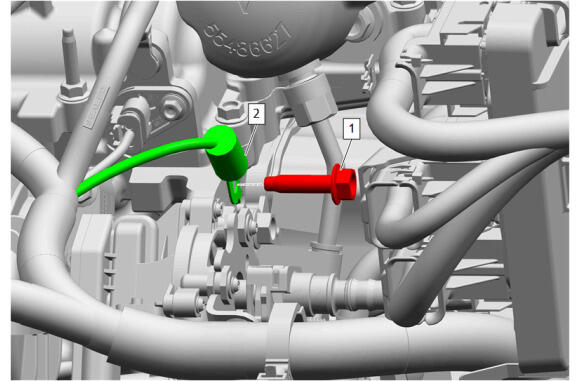

Engine Ground Cable (2) - Install

CAUTION:

Refer to Fastener Caution .

Engine Wiring Harness Ground Bolt (1) - Install and tighten 22 N.m (16 lb ft)
Install the tensioner side and non-tensioner side timing chain guides. Camshaft Timing Chain Replacement
