Installation Procedure
WARNING: This page is about a different variant/trim than selected.

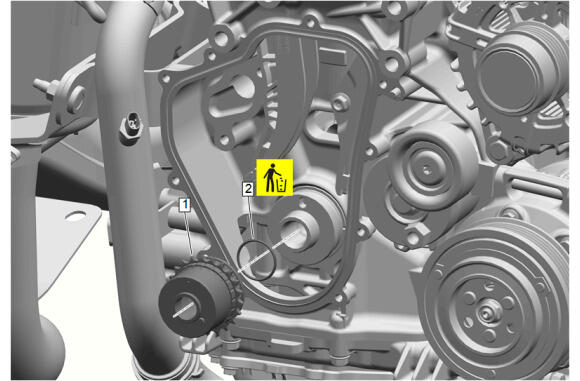

Crankshaft Front Seal (2) - Install NEW
- Crankshaft Sprocket (1) - Install
Camshaft Timing Chain (1) - Install - Camshaft Timing Chain Replacement
NOTE:
The old crankshaft balancer bolt is use to assist in turning engine when needed to secure timing tools and hold the crankshaft sprocket in place. The old crankshaft balancer bolt must be DISCARDED before crankshaft balancer is installed.
