Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Do not allow the crankshaft position sensor reluctor ring to come into contact with external magnetic fields or sharp metal objects. Do not drop the crankshaft position sensor reluctor ring. Do not damage the rubberized encoder track. Failure to follow these precautions may cause damage to the component.

NOTE:

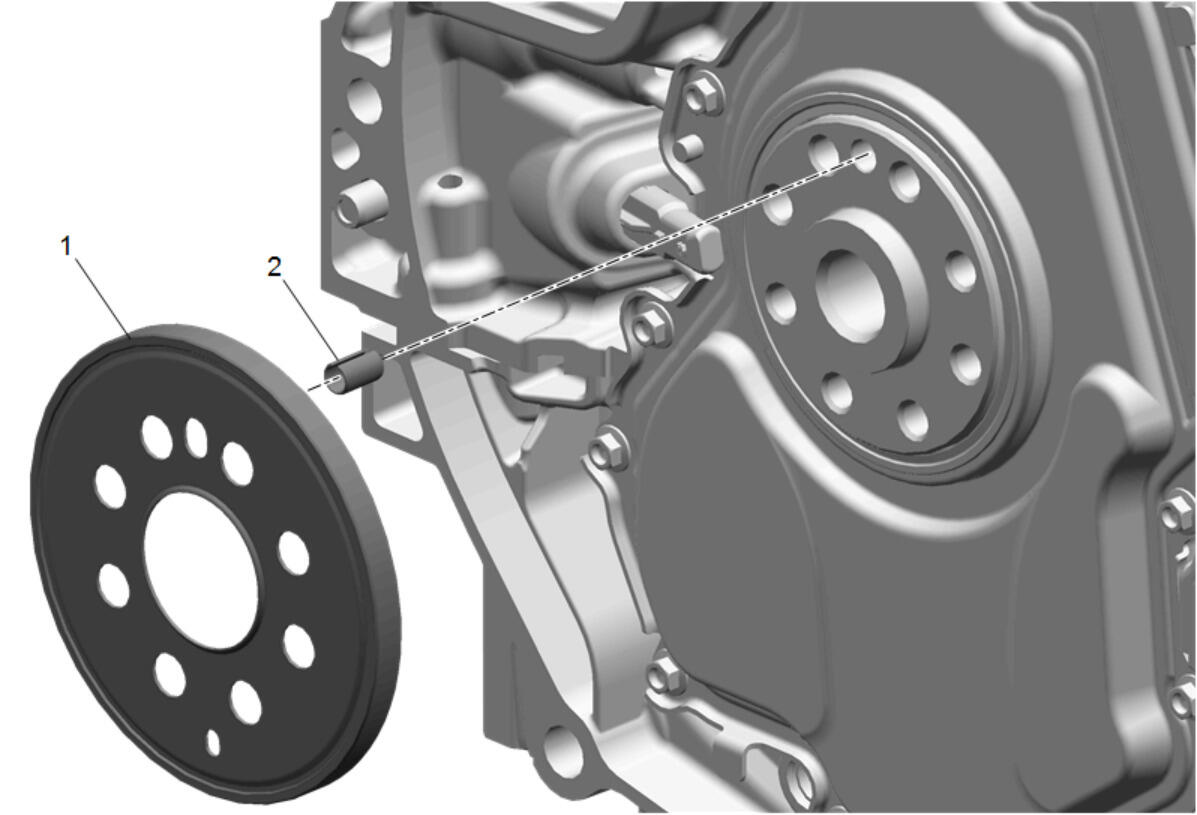

Ensure that the flywheel locating pin (2) sits in the correct holes in the crankshaft and the crankshaft position sensor inner exciter ring.

Flywheel Locating Pin (2) - Install
Crankshaft Position Sensor Inner Exciter Ring (1) - Install
Courtesy of GENERAL MOTORS COMPANY

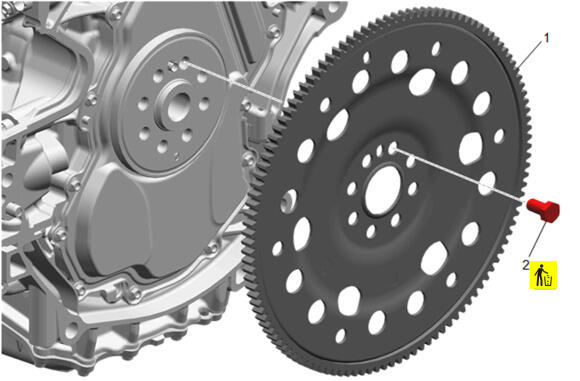

Automatic Transmission Flex Plate - Install - Automatic Transmission Flex Plate Replacement
