Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM5034491Courtesy of GENERAL MOTORS COMPANY

    Camshaft Carrier (1) - Remove - Camshaft Carrier Replacement

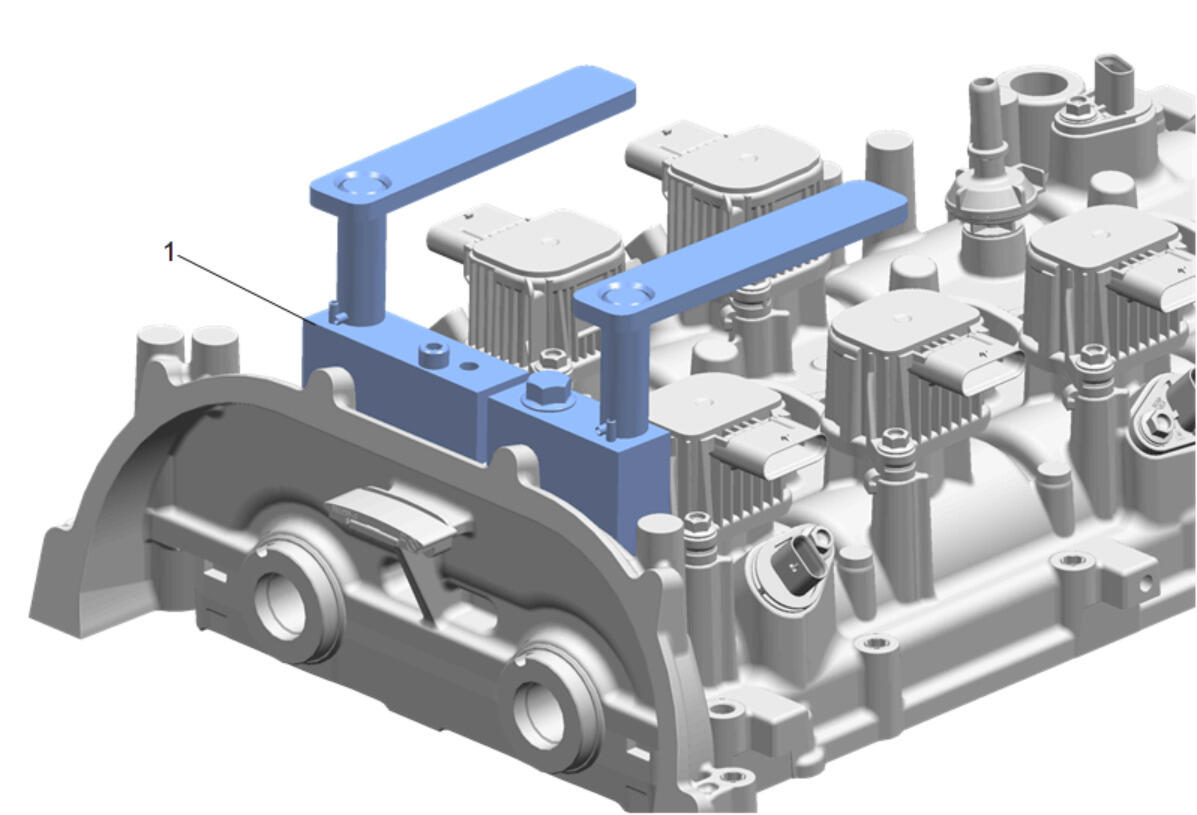

  2. GM5149787Courtesy of GENERAL MOTORS COMPANY

    EN-52462-A  Camshaft Tool (1) - Remove

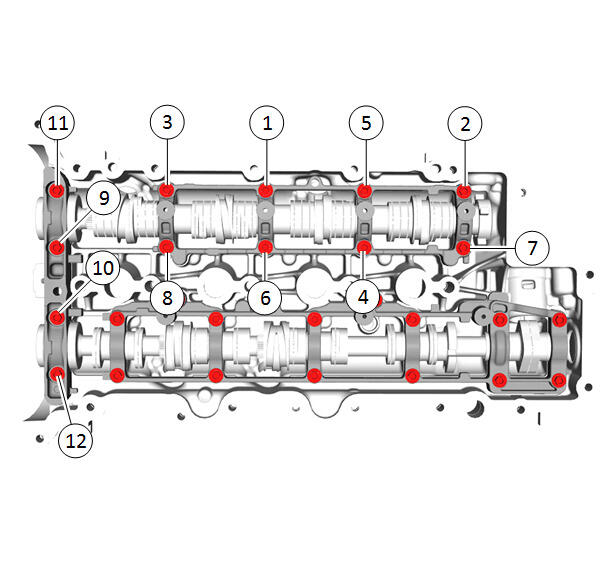

  3. Fig 1: Identifying Camshaft Bearing Cap Bolts With Loosening Sequence
    GM5020888Courtesy of GENERAL MOTORS COMPANY

    Camshaft Bearing Cap Bolt - Loosen the bolts in the sequence shown. [12x]

  4. Camshaft Bearing Cap Bolt - Remove [12x]

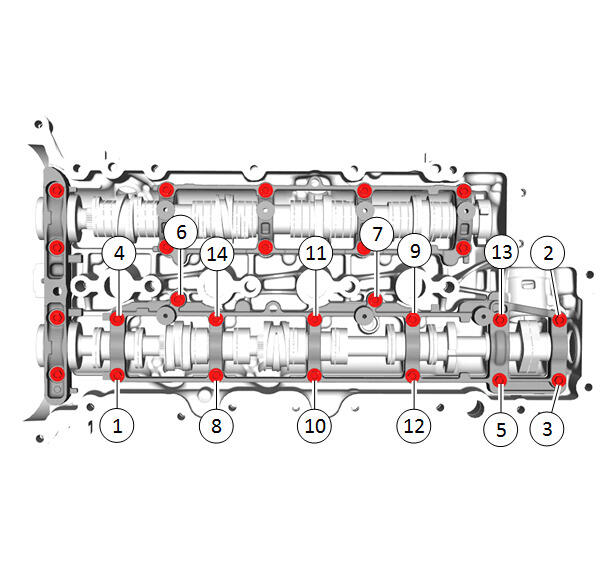

  5. Fig 2: Identifying Camshaft Bearing Cap Bolts With Loosening Sequence
    GM5020892Courtesy of GENERAL MOTORS COMPANY

    Camshaft Bearing Cap Bolt - Loosen the bolts in the sequence shown. [14x]

  6. Camshaft Bearing Cap Bolt - Remove [14x]

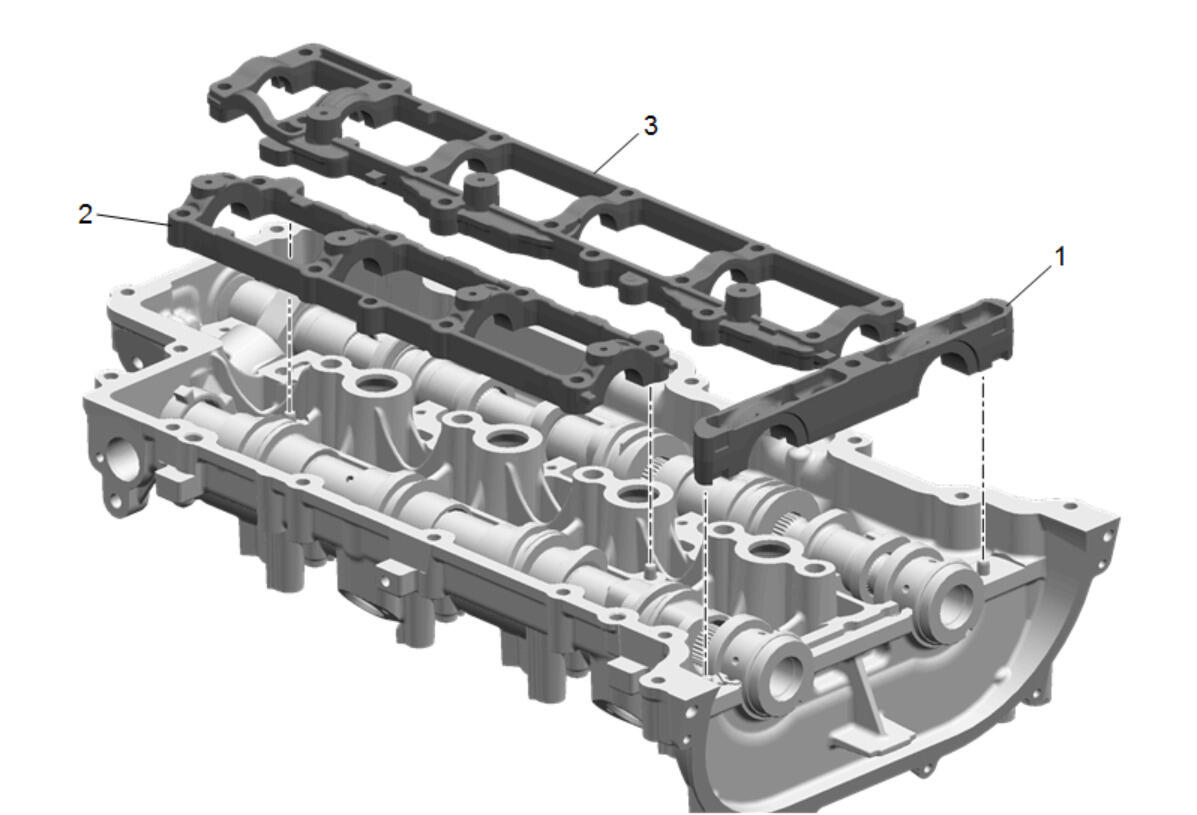

  7. GM5020884Courtesy of GENERAL MOTORS COMPANY

    Camshaft Bearing Cap (1, 2, 3) - Remove

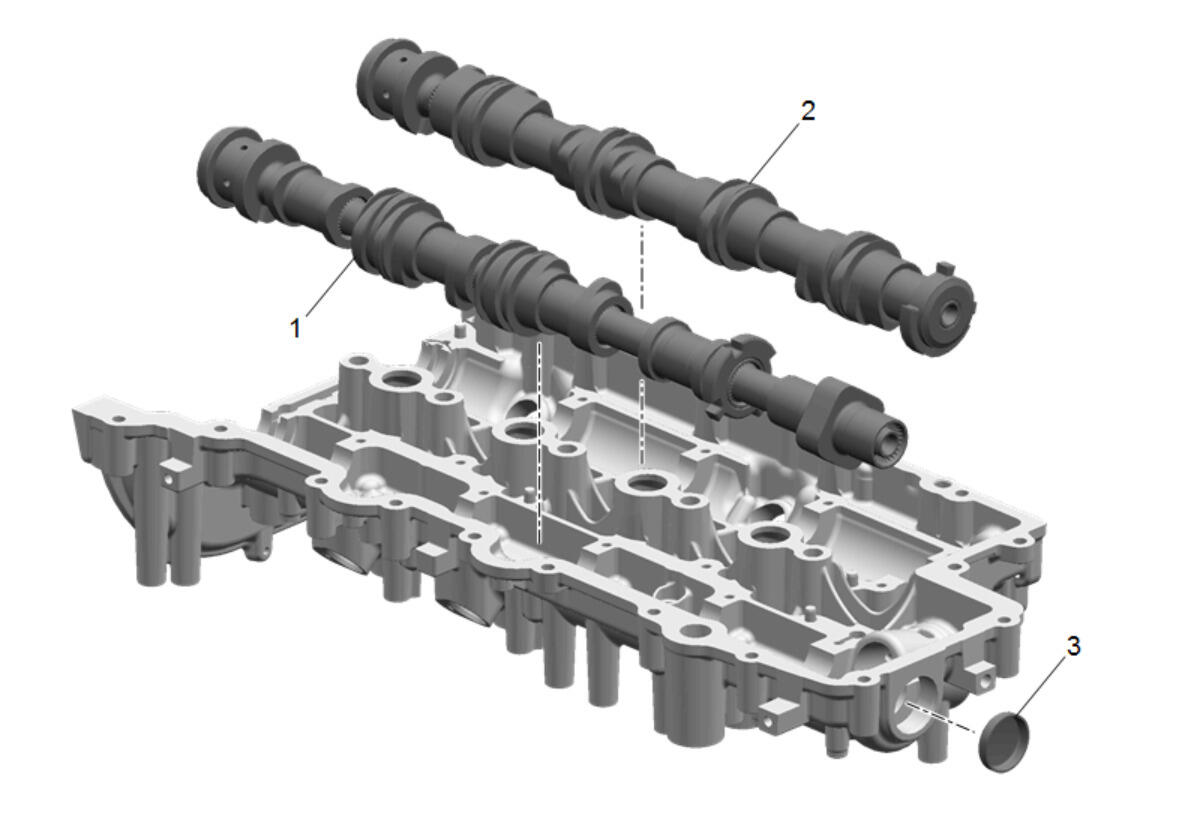

  8. GM5020886Courtesy of GENERAL MOTORS COMPANY

    Exhaust Camshaft (1) - Remove

  9. Intake Camshaft (2) - Remove
