Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Coat all bearing surfaces with clean engine oil.

Exhaust Camshaft (1) - Install
Intake Camshaft (2) - Install
Courtesy of GENERAL MOTORS COMPANY

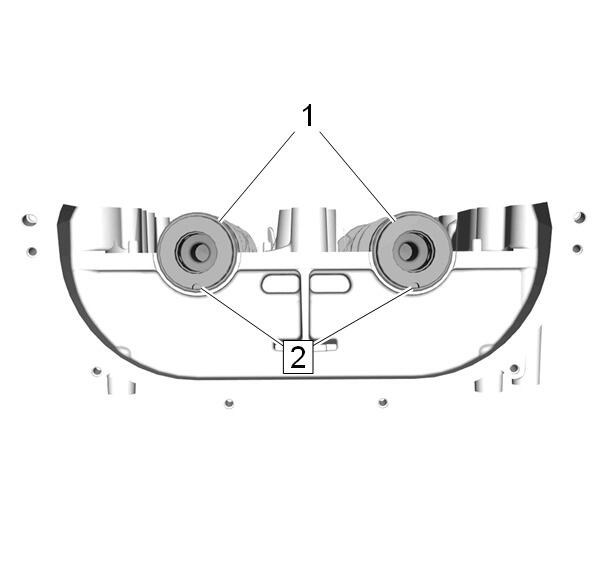

Ensure that the camshaft notch (2) at the front of the camshaft (1) is in the 6 o'clock position.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Coat all bearing surfaces with engine oil.

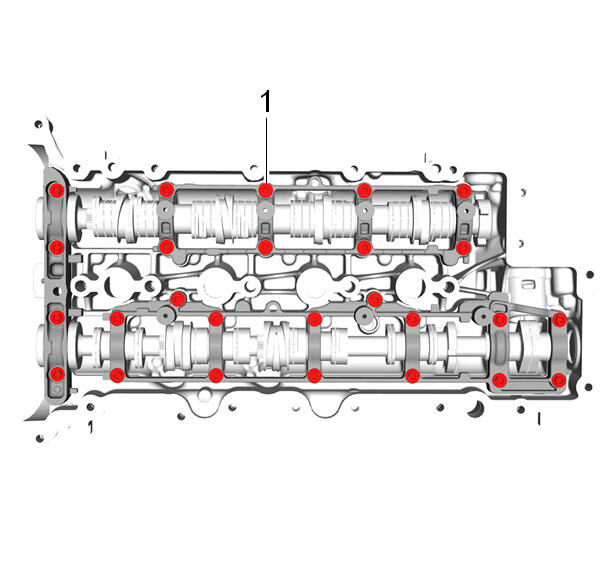

Camshaft Bearing Cap (1, 2, 3) - Install
Courtesy of GENERAL MOTORS COMPANY

Camshaft Bearing Cap Bolt (1) - Install and hand tighten [26x]

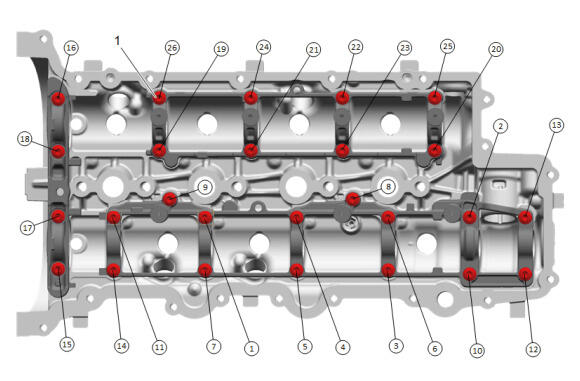

Fig 1: Identifying Camshaft Bearing Cap Bolts With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Camshaft Bearing Cap Bolt - Tighten in sequence [26x]
1. First Pass: - 8 N.m (71 lb in)
2. Second Pass: Loosen - 60 degrees
3. Final Pass: - 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

EN-52462-A Camshaft Tool (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Camshaft Carrier (1) - Install - Camshaft Carrier Replacement
