Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Camshaft Sprocket Bolt - Remove - Camshaft Sprocket Bolt Replacement

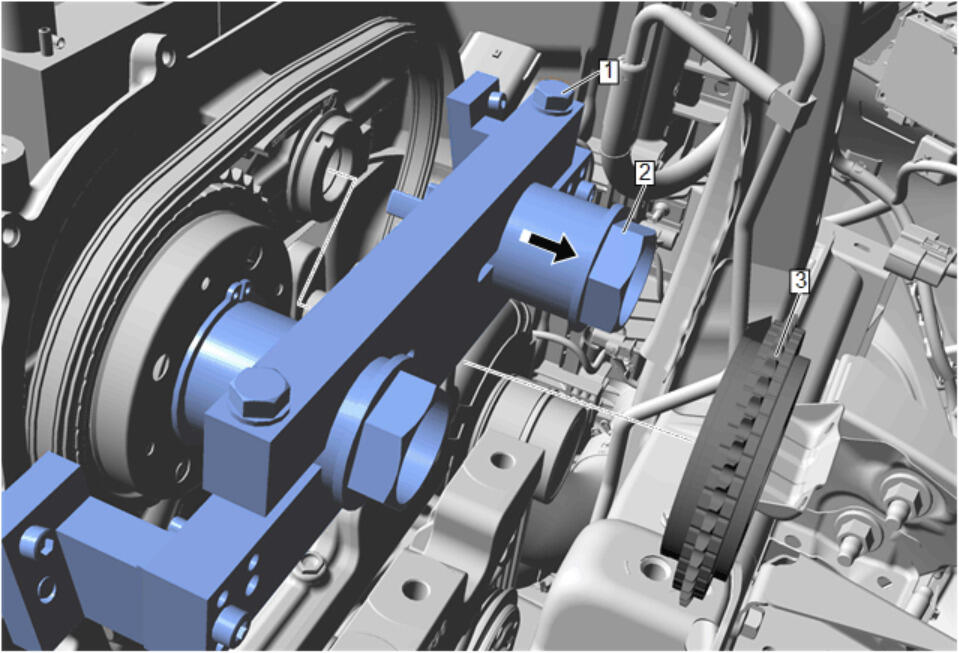

Loosen the EN-52461 Camshaft Torque Reaction Tool bolt (1) to release the intake actuator.
- Pull the EN-52461 Camshaft Torque Reaction Tool (2) away from the engine as indicated.
- Camshaft Position Actuator (3) - Remove
NOTE:
Hold the camshaft position actuator while disengaging the EN-52461 Camshaft Torque Reaction Tool from the actuator to prevent it from dropping.
