Installation Procedure
WARNING: This page is about a different variant/trim than selected.

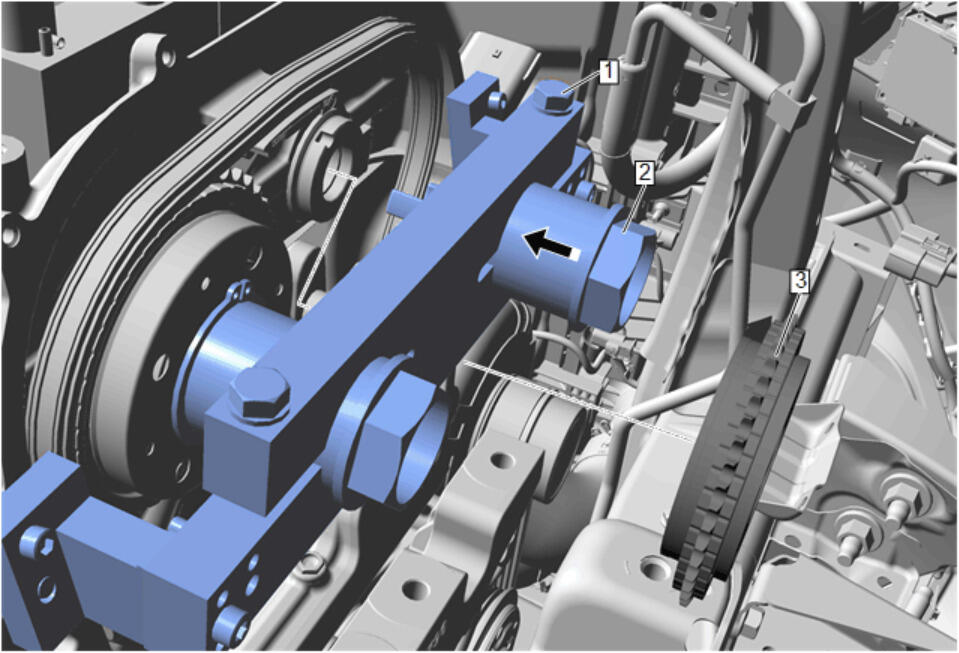

Camshaft Position Actuator (3) - Install
- Push the EN-52461 Camshaft Torque Reaction Tool (2) toward the engine as indicated.
- Tighten the EN-52461 Camshaft Torque Reaction Tool bolt (1) to lock the intake actuator.
- Camshaft Sprocket Bolt - Install - Camshaft Sprocket Bolt Replacement
NOTE:
Hold the camshaft position actuator while engaging the EN-52461 Camshaft Torque Reaction Tool to the actuator to prevent it from dropping.
