Installation Procedure

WARNING: This page is about a different variant/trim than selected.

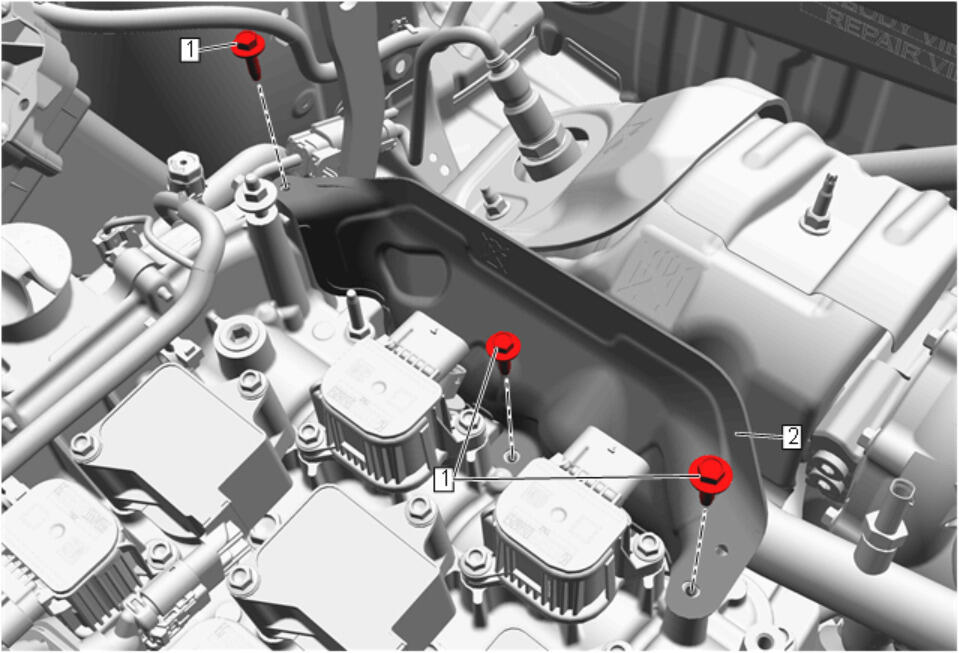

  1. GM5079494Courtesy of GENERAL MOTORS COMPANY

    Camshaft Cover Heat Shield (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Camshaft Cover Heat Shield Bolt (1) - Install and tighten [2x] 8.5 N.m (75 lb in)

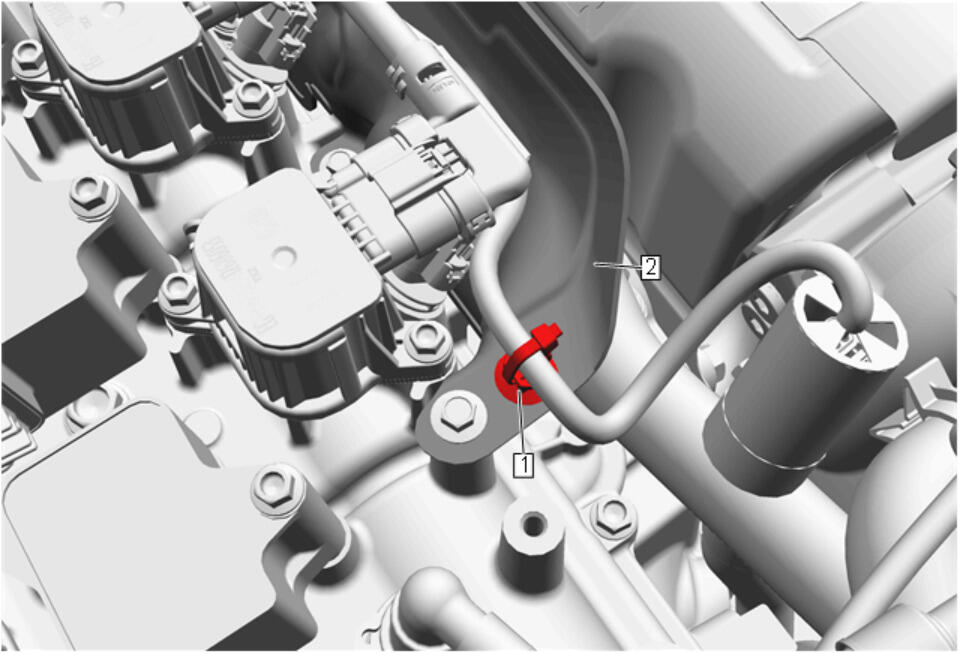

  3. GM5079400Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Camshaft Cover Heat Shield (2) - Install

  4. Air Cleaner Outlet Resonator - Install - Air Cleaner Outlet Resonator Replacement
