Camshaft Housing Inspection Procedure
WARNING: This page is about a different variant/trim than selected.
- Inspect each camshaft housing for dents or damage to the exterior. A dented or damaged camshaft cover may:
- Leak engine oil
- Affect crankcase ventilation
- Interfere with the camshafts
- Interfere with the ignition coil sealing
- Allow water or condensation to enter the engine

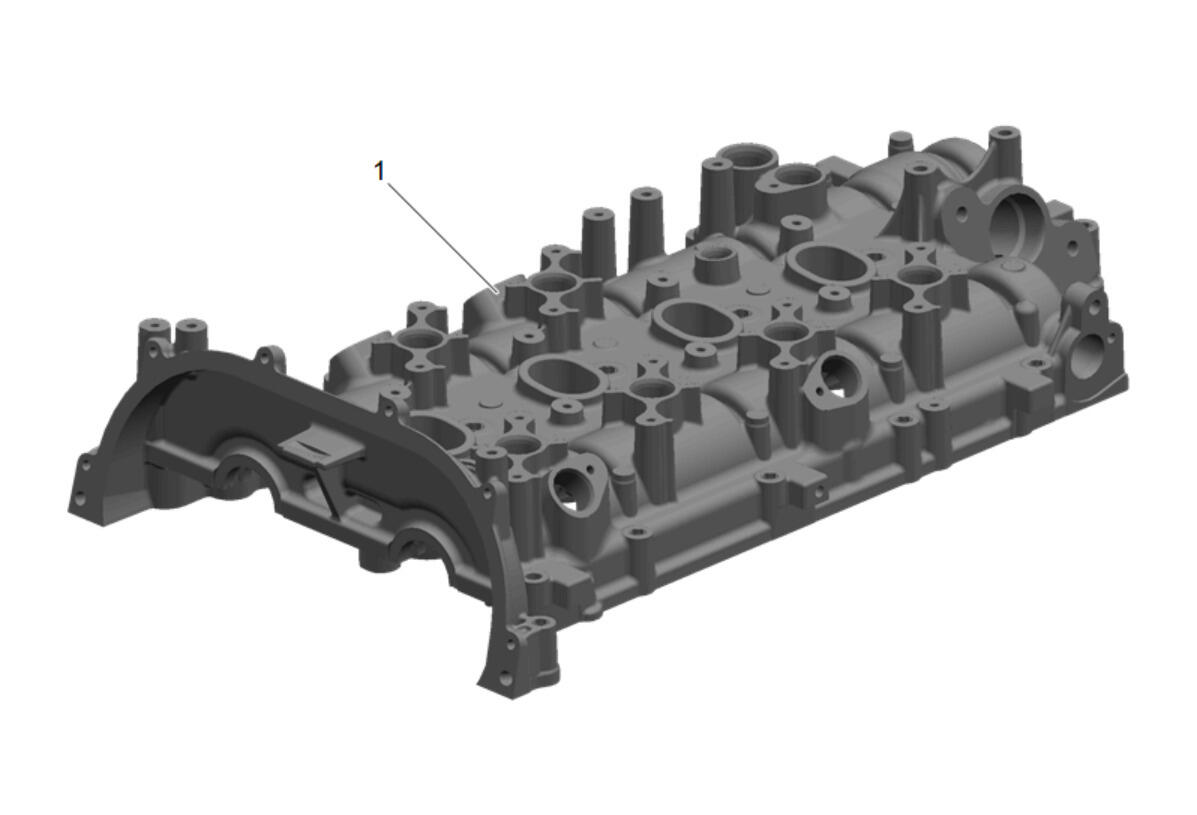

Inspect the exterior of the camshaft housing (1) for the following conditions:
- Damage to the camshaft cover bolt holes
- Damage to the camshaft cover injector bracket bolt holes

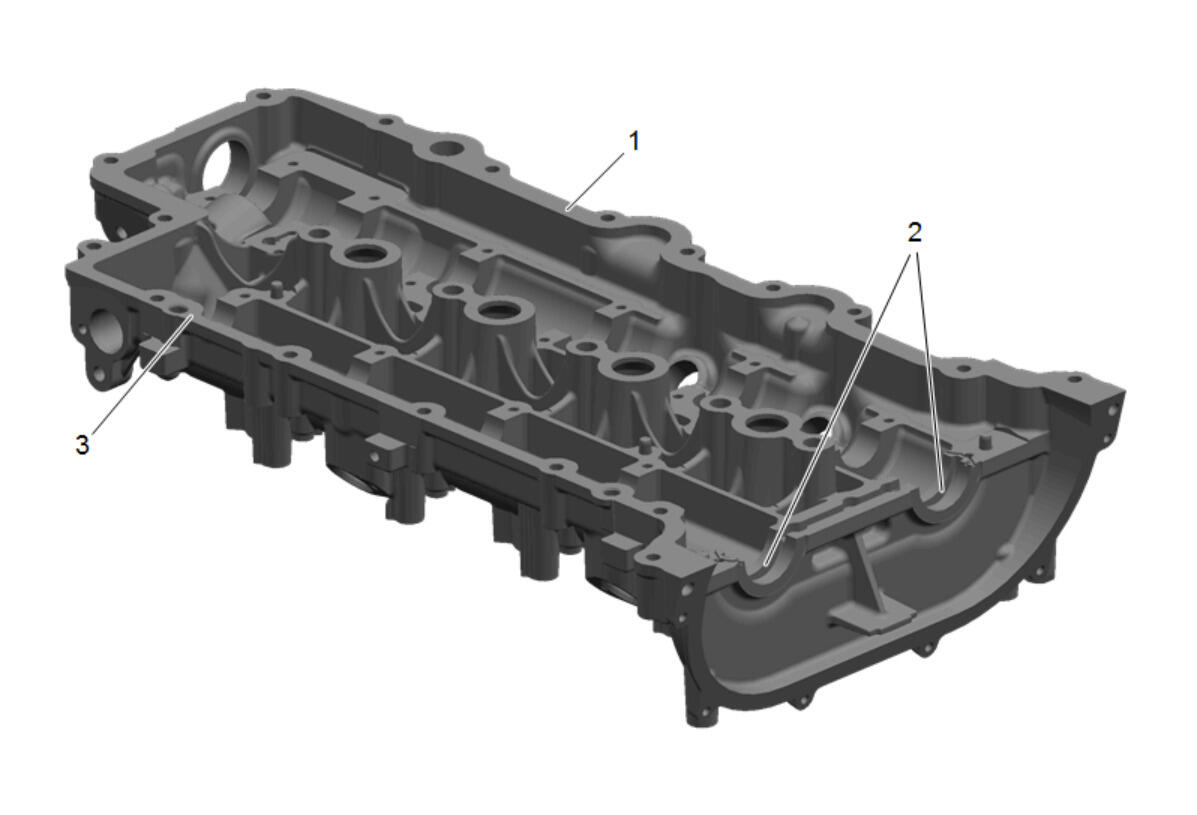

Inspect the interior of the camshaft housing (1) for the following conditions:
- Inspect the camshaft housing for cracks, casting imperfections or damage.
- Inspect the camshaft housing sealing (3) for cracks or damage.
- Inspect all bearing bores (2) for grooves, cracks, scratches and any other damage.
