Installation Procedure
WARNING: This page is about a different variant/trim than selected.
If the balancer chain tensioner (1) needs to be assembled, install the retaining spring (2) and the plunger (3), then install the EN-955-10-A Locking Pin to reset the tensioner.

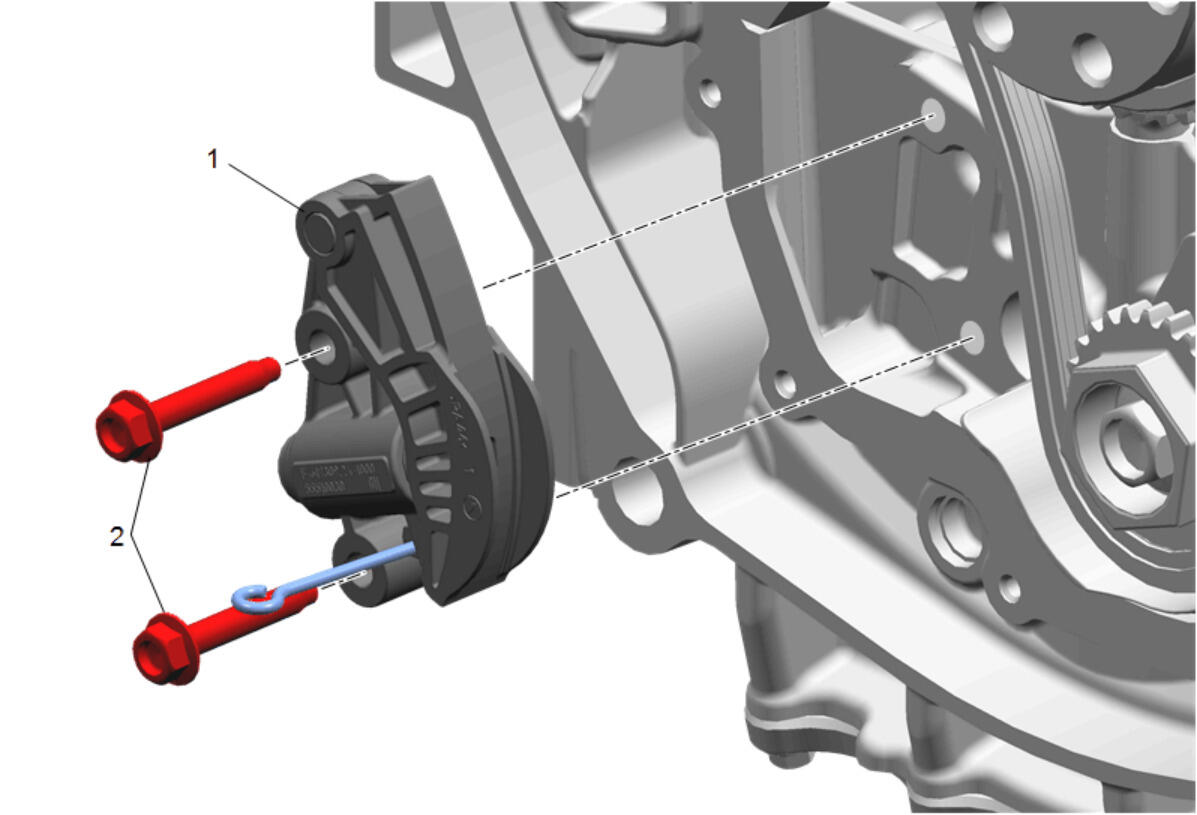

Balancer Chain Tensioner (1) - Install
- Balancer Chain Tensioner Bolt (2) - Install and tighten [2x] - 15 N.m (11 lb ft)

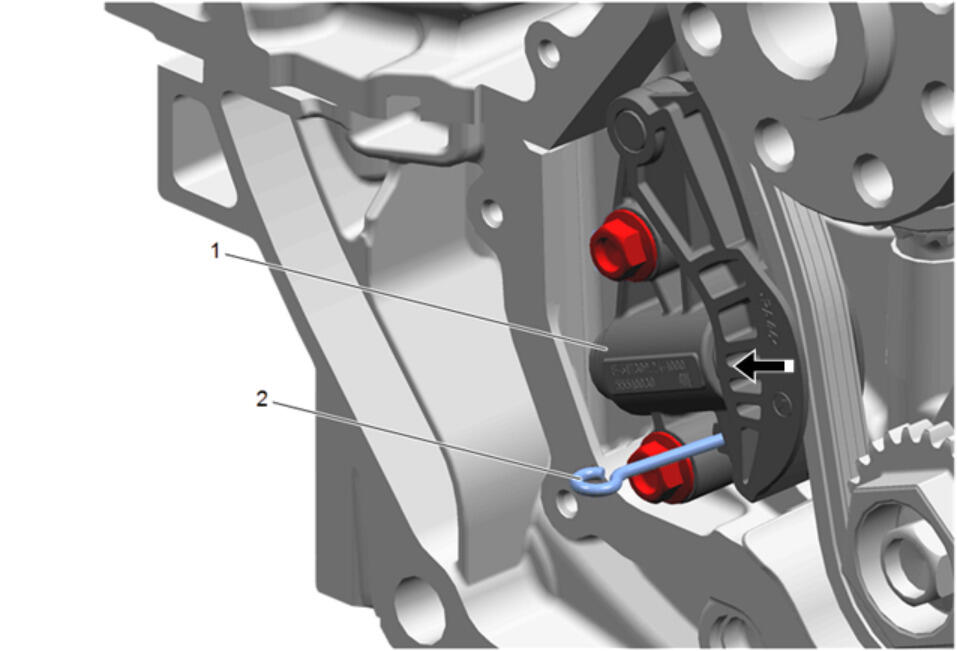

EN-955-A Locking Pin (2) - Remove
- Crankshaft Rear Oil Seal Housing - Install - Crankshaft Rear Oil Seal Housing Replacement
