Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Lower Oil Pan - Remove - Lower Oil Pan Replacement
- NOTE:
It may be necessary to rotate the balance chain to install the EN-52441 Balance Shaft Timing Tool.
Install the EN-52441 Balance Shaft Timing Tool (1) through the hole in the oil pump.
- Crankshaft Position Sensor Inner Exciter Ring - Remove - Crankshaft Position Sensor Inner Exciter Ring Replacement
- Balancer Chain Tensioner - Remove - Balancer Chain Tensioner Replacement
- Balancer Chain Guide - Remove - Balancer Chain Guide Replacement

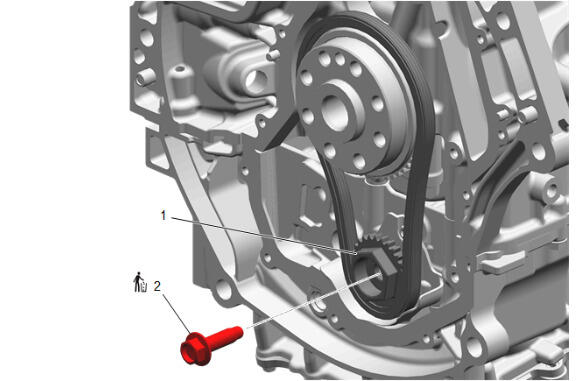

Hold on the balance shaft sprocket (1) with a suitable wrench to loosen the balance shaft sprocket bolt (2).
- Balancer Shaft Sprocket Bolt (2) - Remove and DISCARD

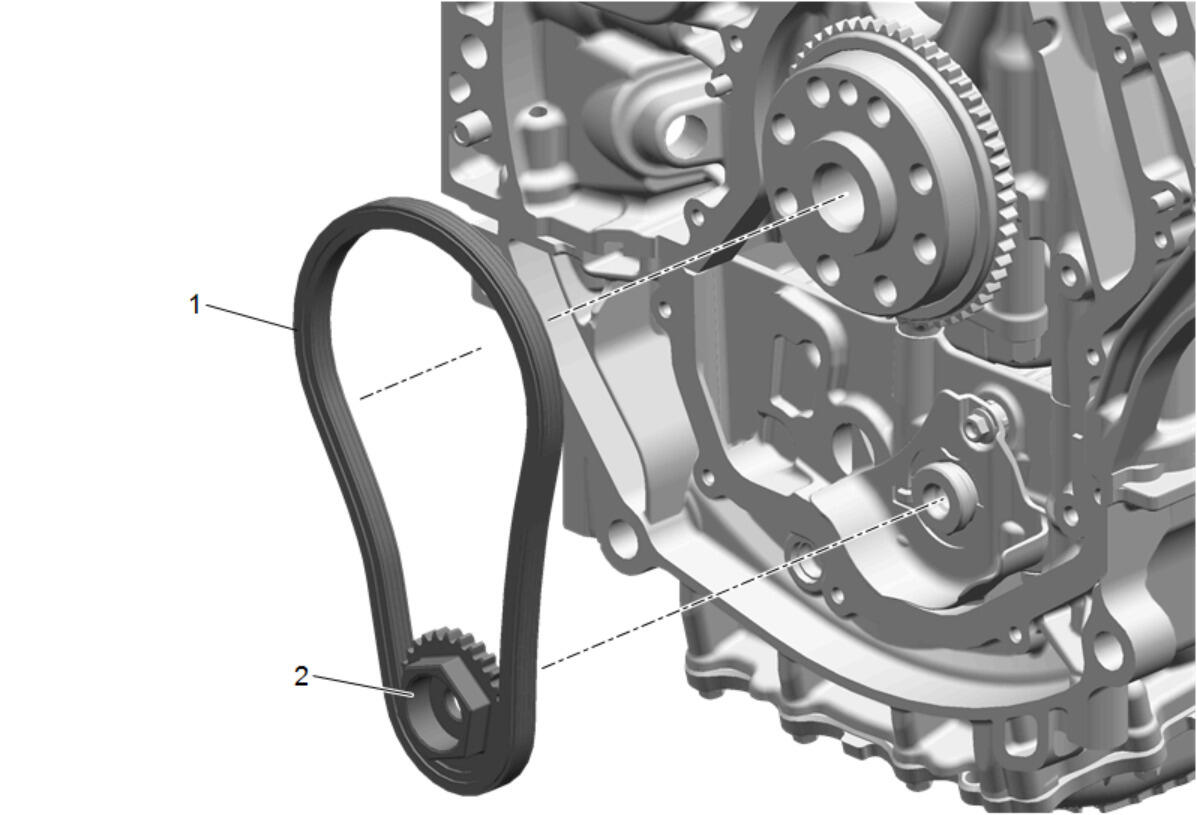

Remove the balance chain (1) and balancer shaft sprocket (2).
