Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Crankshaft Rear Oil Seal Housing - Remove - Crankshaft Rear Oil Seal Housing Replacement
Courtesy of GENERAL MOTORS COMPANY

Compress the balance chain tensioner (1) by pushing in the direction of the arrow.
EN-955 Locking Pin (2) - Install
Courtesy of GENERAL MOTORS COMPANY

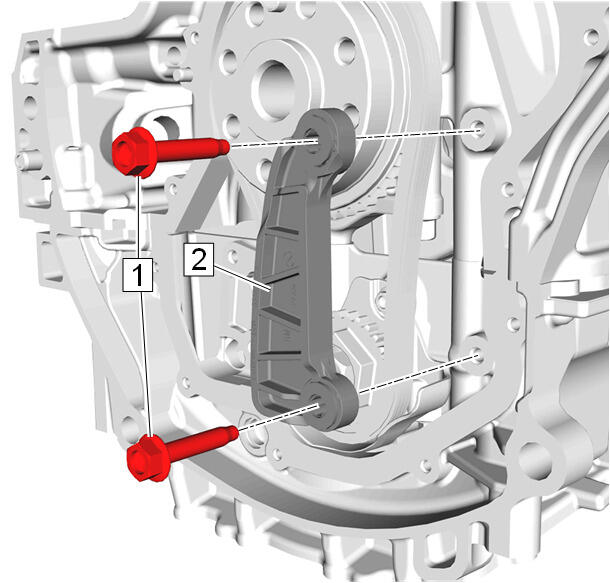

Balance Chain Guide Bolt (1) - Remove [2x]
Balancer Chain Guide (2) - Remove
