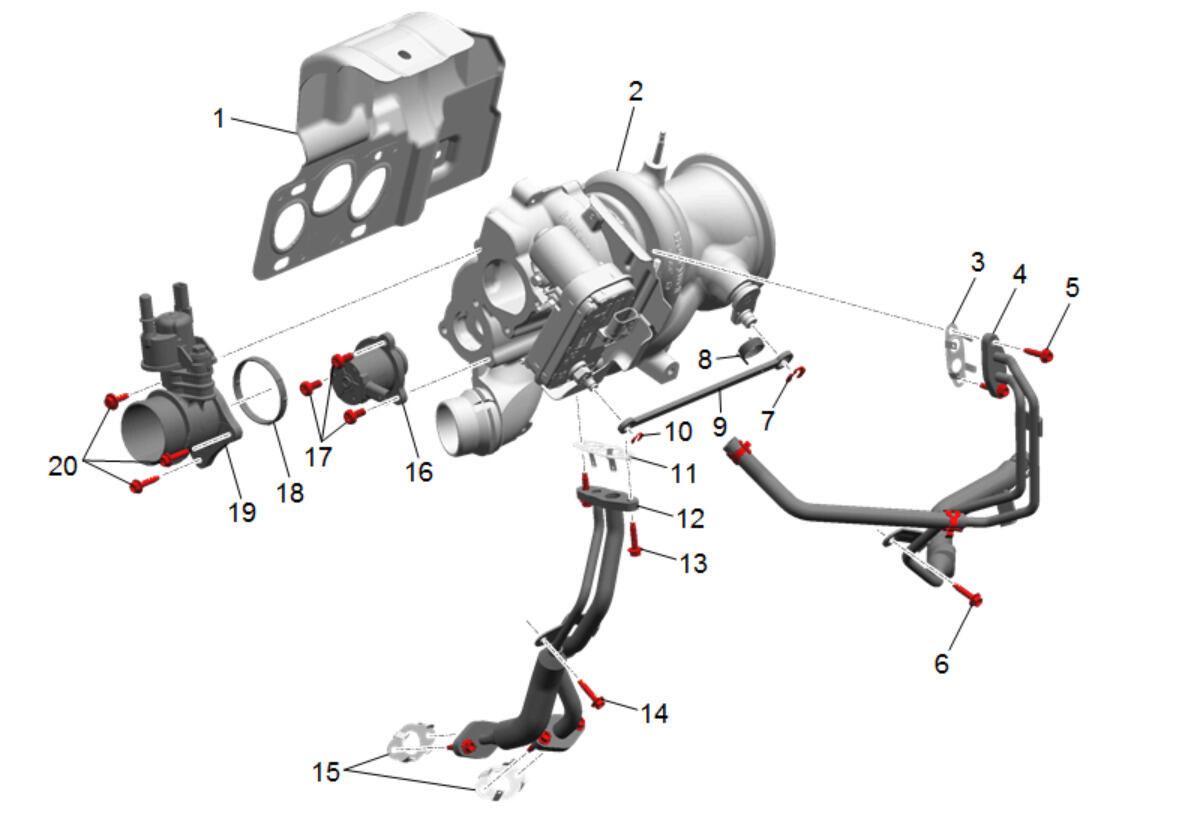

Turbocharger and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Turbocharger Heat Shield |
| 2 | Turbocharger |
| 3 | Turbocharger Coolant Feed and Return Pipe Gasket |
| 4 | Turbocharger Coolant Feed and Return Pipe |
| 5 | Turbocharger Coolant Feed and Return Pipe Bolt [6x] |
| 6 | Turbocharger Coolant Feed and Return Pipe Bolt |
| 7 | Compressor Air Intake Turbocharger Wastegate Valve Link Clip |
| 8 | Compressor Air Intake Turbocharger Wastegate Valve Link Spring |
| 9 | Compressor Air Intake Turbocharger Wastegate Actuator Rod |
| 10 | Compressor Air Intake Turbocharger Wastegate Actuator Link Clip |
| 11 | Turbocharger Oil Feed Pipe Gasket |
| 12 | Turbocharger Oil Feed Pipe |
| 13 | Turbocharger Oil Feed Pipe Bolt [2x] |
| 14 | Turbocharger Coolant Feed Pipe Bracket Bolt |
| 15 | Turbocharger Oil Feed Pipe Gasket [2x] |
| 16 | Turbocharger Bypass Valve Solenoid |
| 17 | Turbocharger Bypass Valve Solenoid Bolt [3x] |
| 18 | Charge Air Cooler Inlet Air Hose Seal |
| 19 | Charge Air Cooler Inlet Air Hose Adapter |
| 20 | Charge Air Cooler Inlet Air Hose Bolt [3x] |
