Timing Chain and Components

WARNING: This page is about a different variant/trim than selected.

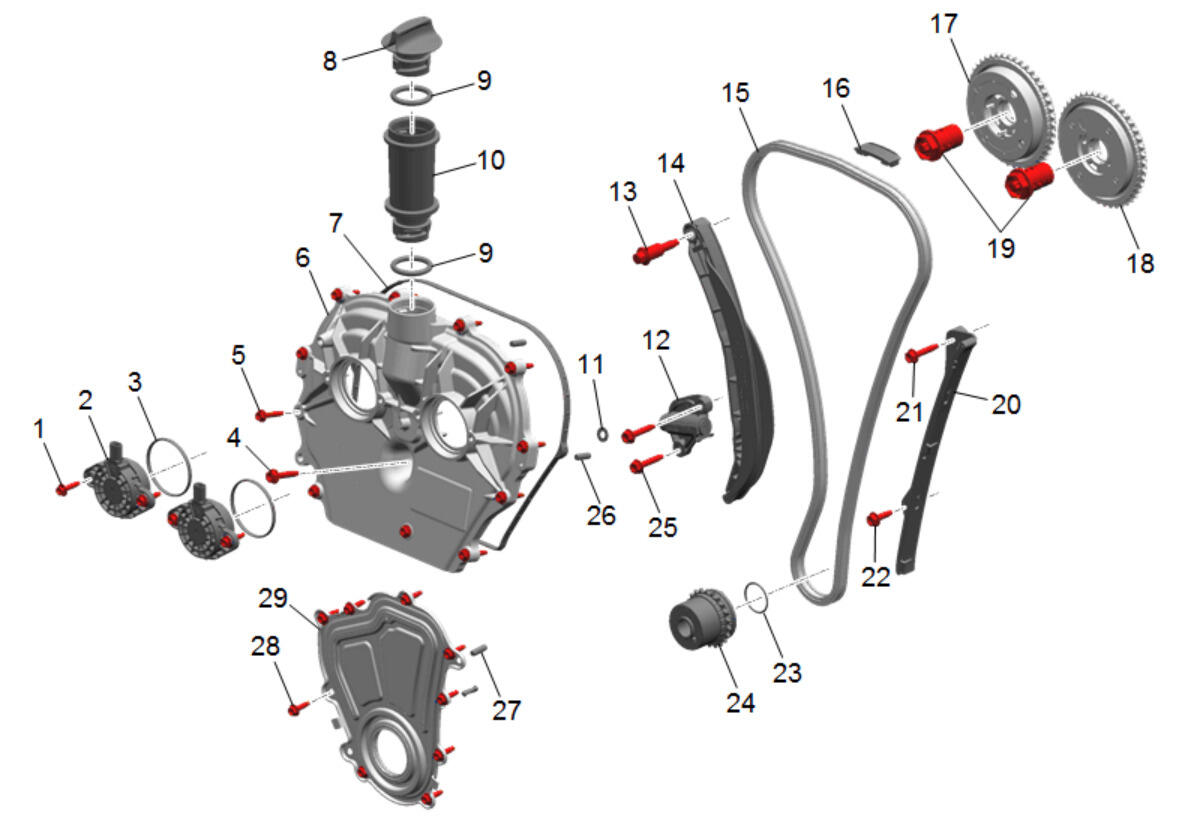

Fig 1: Exploded View Of Timing Chain And Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Camshaft Position Actuator Solenoid Valve Bolt [2x]
2	Camshaft Position Actuator Solenoid Valve [2x]
3	Camshaft Position Actuator Magnet Gasket [2x]
4	Engine Front Cover Bolt
5	Timing Chain Upper Cover Bolt [11x]
6	Timing Chain Upper Cover
7	Timing Chain Upper Cover Seal
8	Oil Filler Cap
9	Oil Filler Cap Seal [2x]
10	Oil Filler Tube - Model Dependent
11	Timing Chain Upper Cover Seal
12	Timing Chain Tensioner
13	Timing Chain Tensioner Shoe Bolt
14	Timing Chain Tensioner Shoe
15	Timing Chain
16	Timing Chain Upper Guide
17	Camshaft Exhaust Sprocket
18	Camshaft Intake Sprocket
19	Camshaft Sprocket Bolt [2x]
20	Timing Chain Guide
21	Timing Chain Guide Bolt
22	Timing Chain Guide Bolt
23	Crankshaft Front Oil Seal
24	Crankshaft Sprocket
25	Timing Chain Tensioner Bolt [2x]
26	Engine Front Cover Locating Pin [2x]
27	Engine Front Cover Locating Pin [2x]
28	Engine Front Cover Bolt [9x]
29	Engine Front Cover
