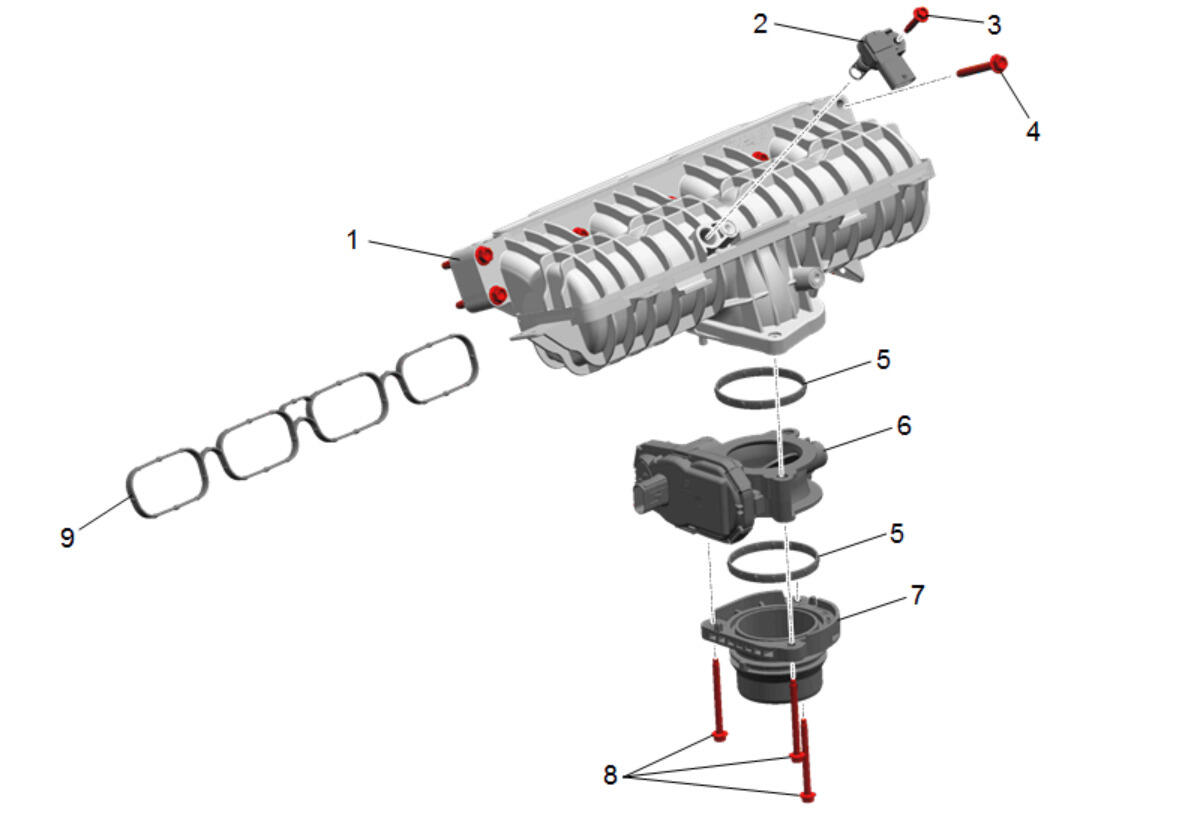

Intake Manifold and Components
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Intake Manifold |
| 2 |
Intake Air Pressure and Temperature Sensor |
| 3 |
Intake Air Pressure and Temperature Sensor Bolt |
| 4 |
Intake Manifold Bolt [7x] |
| 5 |
Throttle Body Gasket [2x] |
| 6 |
Throttle Body |
| 7 |
Throttle Body Adapter |
| 8 |
Throttle Body Bolt [3x] |
| 9 |
Intake Manifold Gasket |
