Engine Block and Components
WARNING: This page is about a different variant/trim than selected.

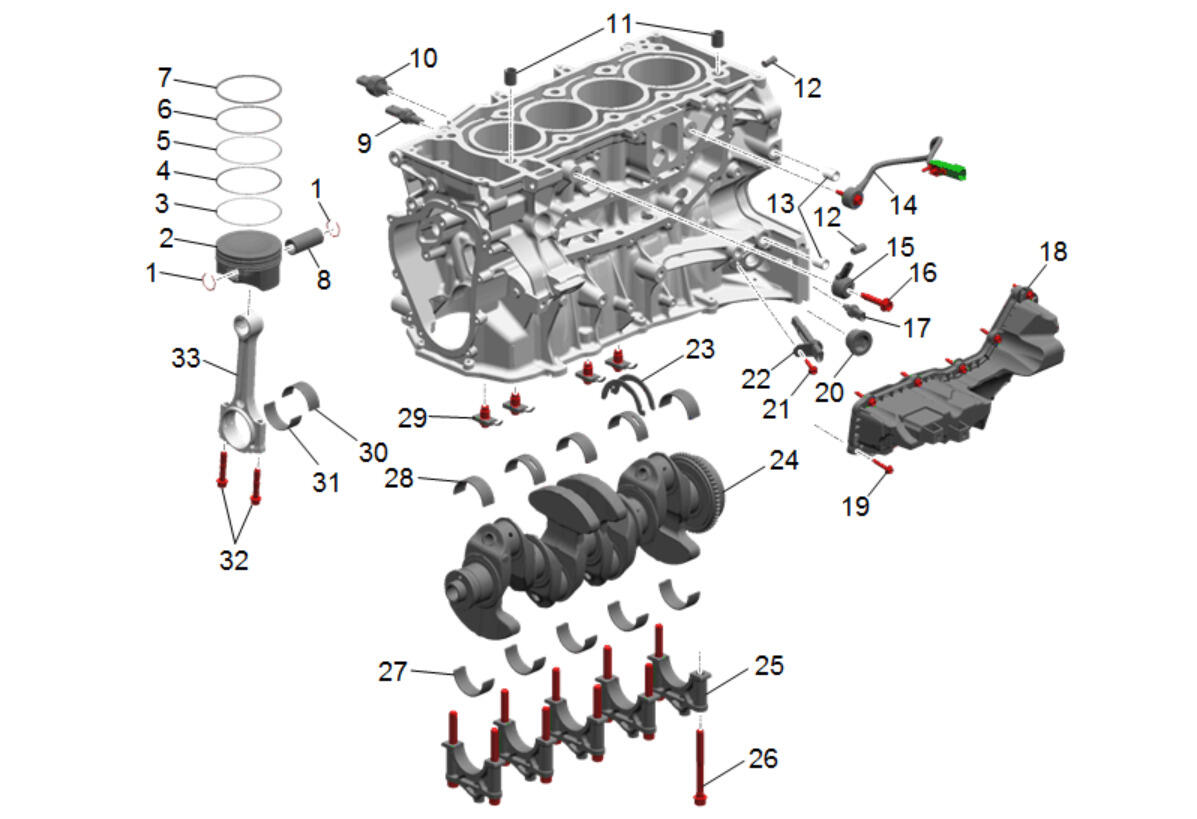

| Callout | Component Name |
|---|---|
| 1 | Piston Pin Retainer [8x] |
| 2 | Piston [4x] Piston Oil Ring [4x] |
| 3 | Piston Oil Ring Rail [4x] |
| 4 | Piston Oil Ring Rail Spacer [4x] |
| 5 | Piston Oil Ring Rail [4x] |
| 6 | Piston Compression Lower Ring [4x] |
| 7 | Piston Compression Upper Ring [4x] |
| 8 | Piston Pin [4x] |
| 9 | Engine Oil Temperature Sensor |
| 10 | Engine Oil Temperature Sensor |
| 11 | Cylinder Head Locating Pin [2x] |
| 12 | Transmission Locating Pin [2x] |
| 13 | Starter Locating Pin [2x] |
| 14 | Knock Sensor |
| 15 | Knock Sensor |
| 16 | Knock Sensor Bolt |
| 17 | Engine Coolant Temperature Sensor |
| 18 | Positive Crankcase Ventilation Oil Separator Cover |
| 19 | Positive Crankcase Ventilation Oil Separator Cover Bolt [11x] |
| 20 | Engine Block Coolant Hole Plug |
| 21 | Crankshaft Position Sensor Bolt |
| 22 | Crankshaft Position Sensor |
| 23 | Crankshaft Thrust Bearing [2x] |
| 24 | Crankshaft |
| 25 | Crankshaft Bearing Cap [5x] |
| 26 | Crankshaft Bearing Cap Bolt [10x] |
| 27 | Crankshaft Lower Bearing [5x] |
| 28 | Crankshaft Upper Bearing [5x] |
| 29 | Piston Oil Nozzle [4x] |
| 30 | Connecting Rod Bearing - Upper - Lower |
