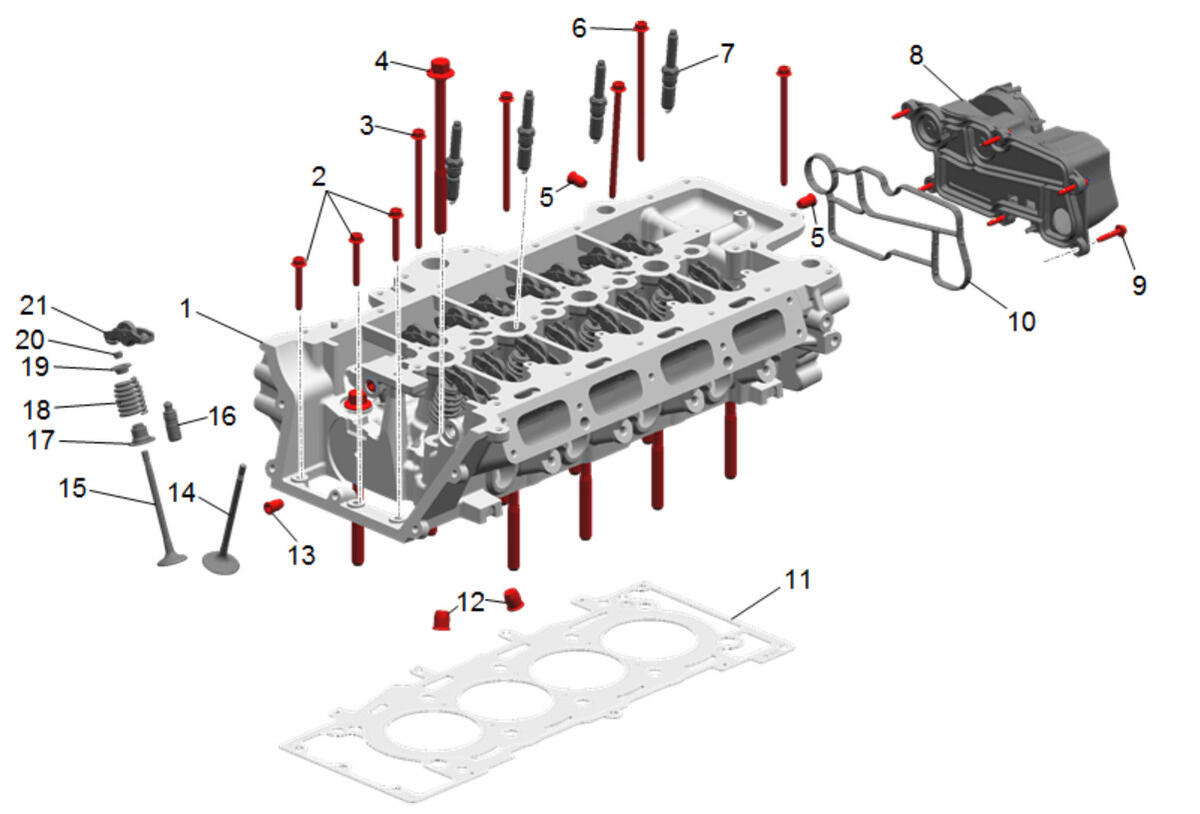

Cylinder Head and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Cylinder Head |
| 2 | Cylinder Head Bolt [3x] |
| 3 | Cylinder Head Bolt [4x] |
| 4 | Cylinder Head Bolt [10x] |
| 5 | Cylinder Head Oil Gallery Plug [2x] |
| 6 | Cylinder Head Bolt |
| 7 | Spark Plug [4x] |
| 8 | Positive Crankcase Ventilation Oil Separator |
| 9 | Positive Crankcase Ventilation Oil Separator Gasket |
| 10 | Positive Crankcase Ventilation Oil Separator Bolt [6x] |
| 11 | Cylinder Head Gasket |
| 12 | Plug [2x] |
| 13 | Cylinder Head Core Hole Plug [13x] |
| 14 | Exhaust Valve [8x] |
| 15 | Intake Valve [8x] |
| 16 | Hydraulic Valve Lash Adjuster [16x] |
| 17 | Valve Stem Oil Seal [16x] |
| 18 | Valve Spring [16x] |
| 19 | Valve Spring Retainer [16x] |
| 20 | Valve Stem Key [16x] |
| 21 | Valve Rocker Arm [16x] |
