Positive Crankcase Ventilation Fresh Air Tube Replacement

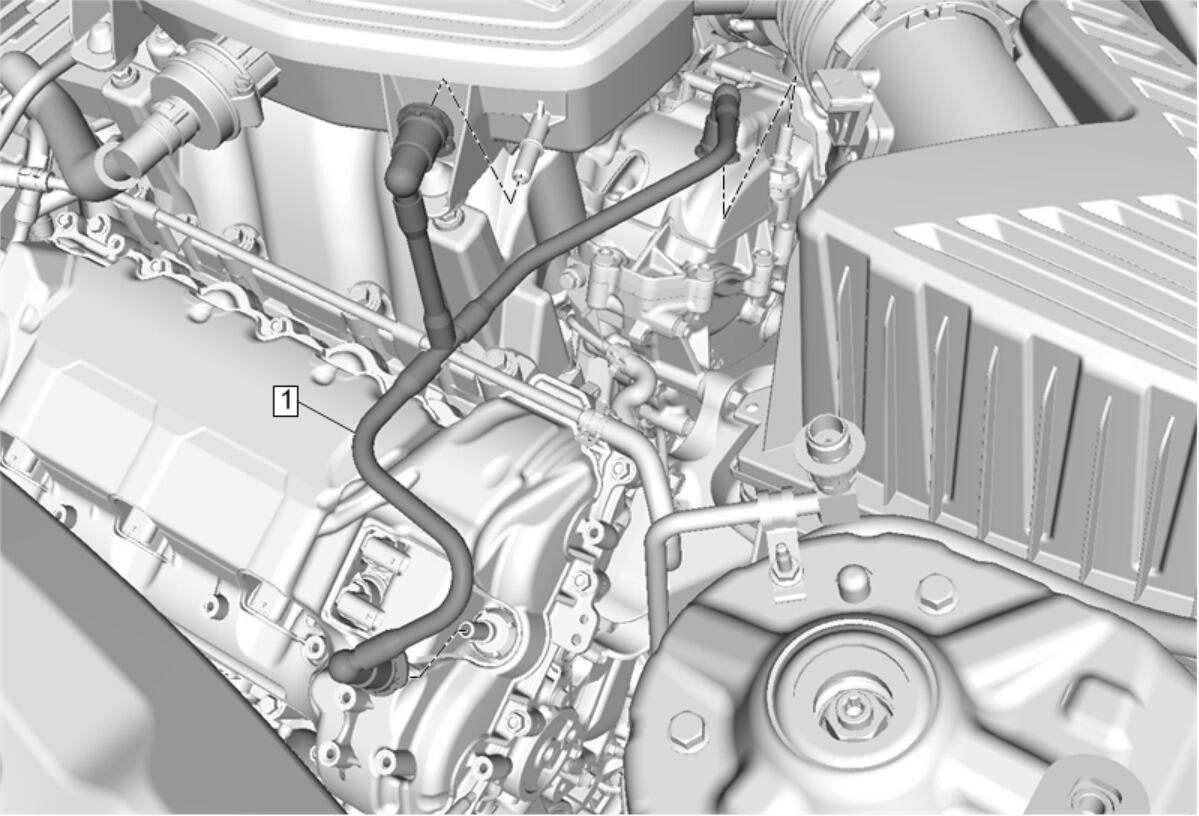

GM4299087Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Positive Crankcase Ventilation Fresh Air Tube
Procedure
Disconnect the positive crankcase ventilation fresh air tube from the air cleaner outlet duct and the camshaft covers. Plastic Collar Quick Connect Fitting Service
