Camshaft Housing Cover Insulator Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. Preliminary Procedures Disconnect electrical connectors and remove the engine harness from the camshaft housing cover insulator. Positive Crankcase Ventilation Tube @ Camshaft Cover - Disconnect - Plastic Collar Quick Connect Fitting Service

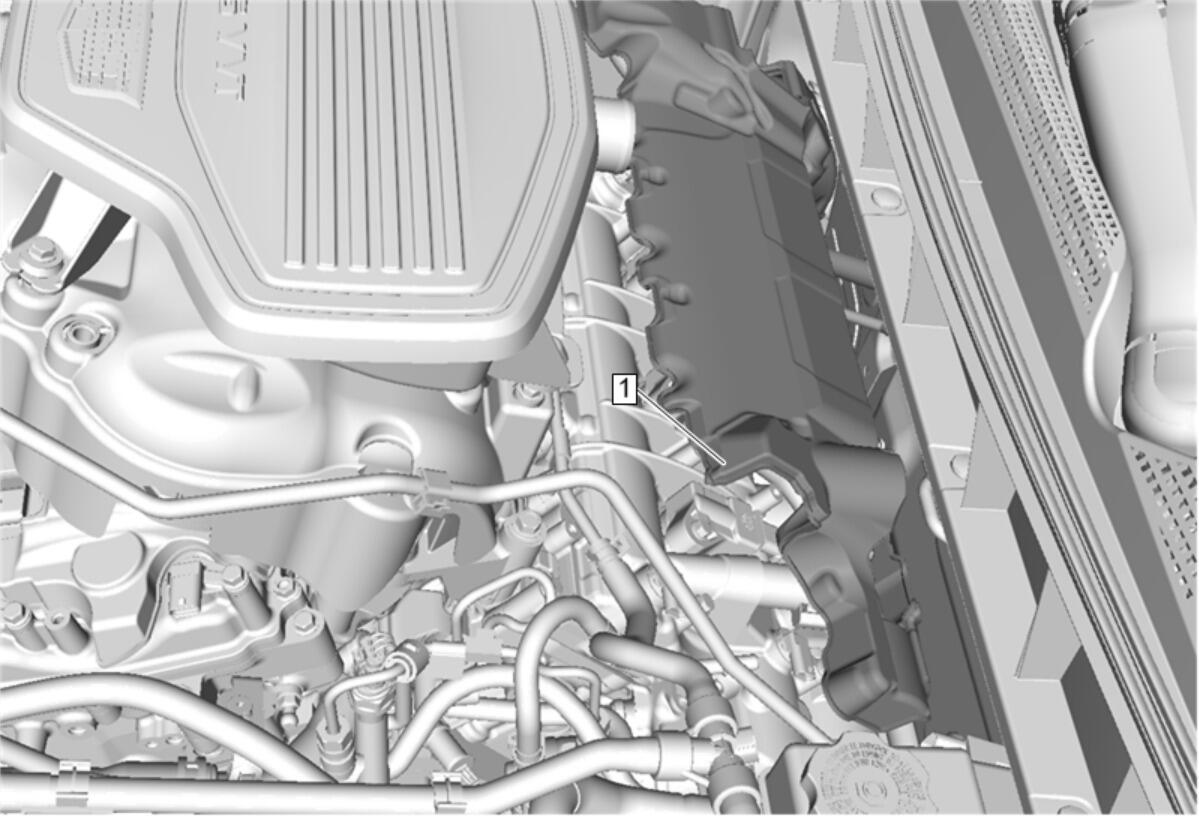

1	Camshaft Housing Cover Insulator

Callout

Component Name

WARNING:

The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

Preliminary Procedures

Disconnect electrical connectors and remove the engine harness from the camshaft housing cover insulator.
Positive Crankcase Ventilation Tube @ Camshaft Cover - Disconnect - Plastic Collar Quick Connect Fitting Service

Camshaft Housing Cover Insulator
