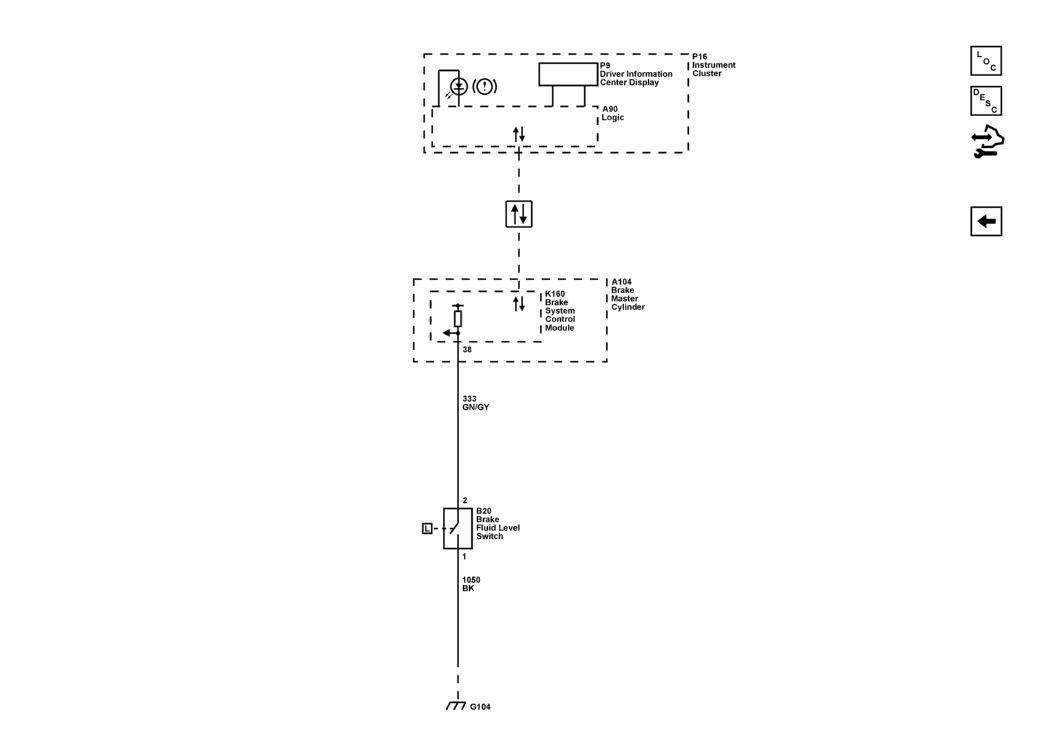

Home >> Chevrolet >> 2021 >> Blazer RS, FWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brakes >> Schematic Wiring Diagrams >> Hydraulic Brake Wiring Schematics >> Hydraulic Brakes (LSY)
