Installation Procedure
- Remove the plug from the rear brake caliper inlet.

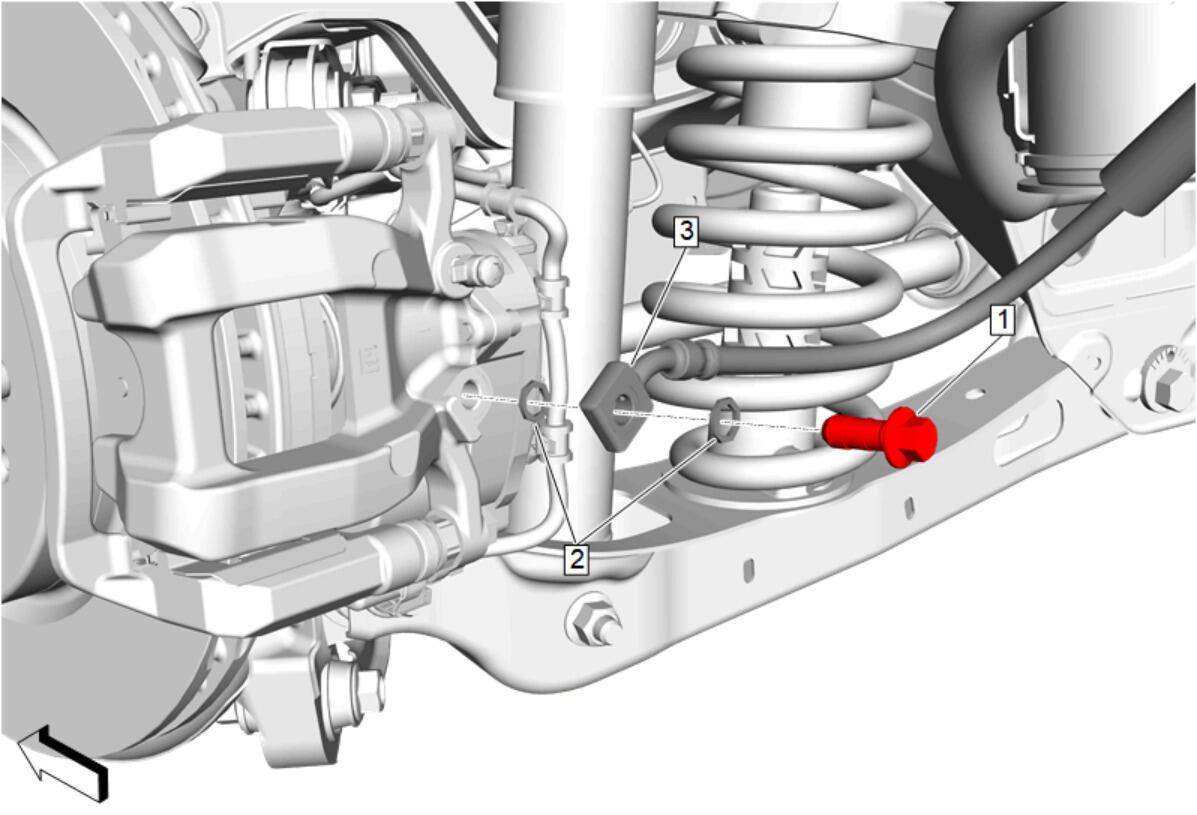

Brake Hose Fitting Gasket (2) @ Brake Hose Fitting (3) - Install NEW [2x]
- Rear Brake Hose (3) - Install
- Brake Hose Fitting Bolt (1) - Install and tighten 44 N.m (32 lb ft)
Brake Hose Bracket Nut (1) - Install and tighten 9 N.m (80 lb in)
- Remove the plug from the rear brake hose outlet.
Brake Pipe Fitting (1) - Install and tighten 21 N.m (15 lb ft)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Bleed the brake system. Hydraulic Brake System Bleeding (Manual without JEO) , or Hydraulic Brake System Bleeding (Pressure without JEO) , or Hydraulic Brake System Bleeding (Pressure with JEO)
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
