Installation Procedure

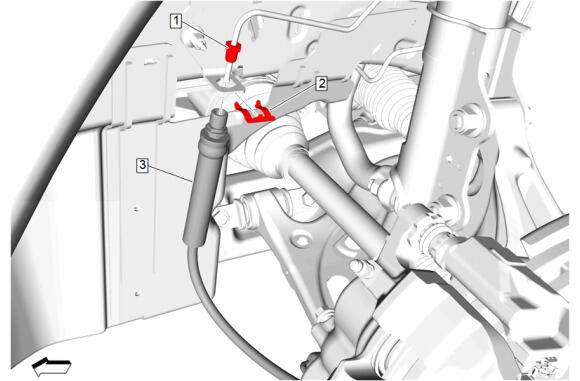

  1. GM5598948Courtesy of GENERAL MOTORS COMPANY

    Front Brake Hose (3) - Install

  2. Front Brake Hose Retainer (2) - Install
  3. Remove the cap from the brake pipe fitting.
    4. CAUTION:

    Fastener Caution

  4. Brake Pipe Fitting (1) - Install and tighten 21 N.m (15 lb ft)

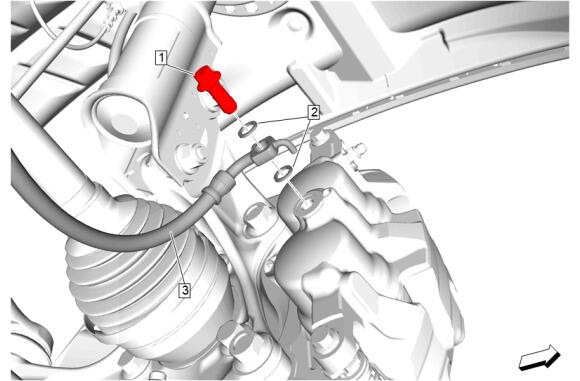

  5. GM5596412Courtesy of GENERAL MOTORS COMPANY

    Remove the plug from the front brake caliper inlet.

  6. Front Brake Hose Fitting Gasket (2) - Install NEW [2x]
  7. Front Brake Hose (3) @ Front Brake Caliper - Install
  8. Front Brake Hose Fitting (1) - Install and tighten 44 N.m (32 lb ft)
  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  10. Bleed the brake system. Hydraulic Brake System Bleeding (Manual without JEO) , or Hydraulic Brake System Bleeding (Pressure without JEO) , or Hydraulic Brake System Bleeding (Pressure with JEO)
  11. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  12. Remove the support and lower the vehicle.
