Sunroof Window Motor Replacement

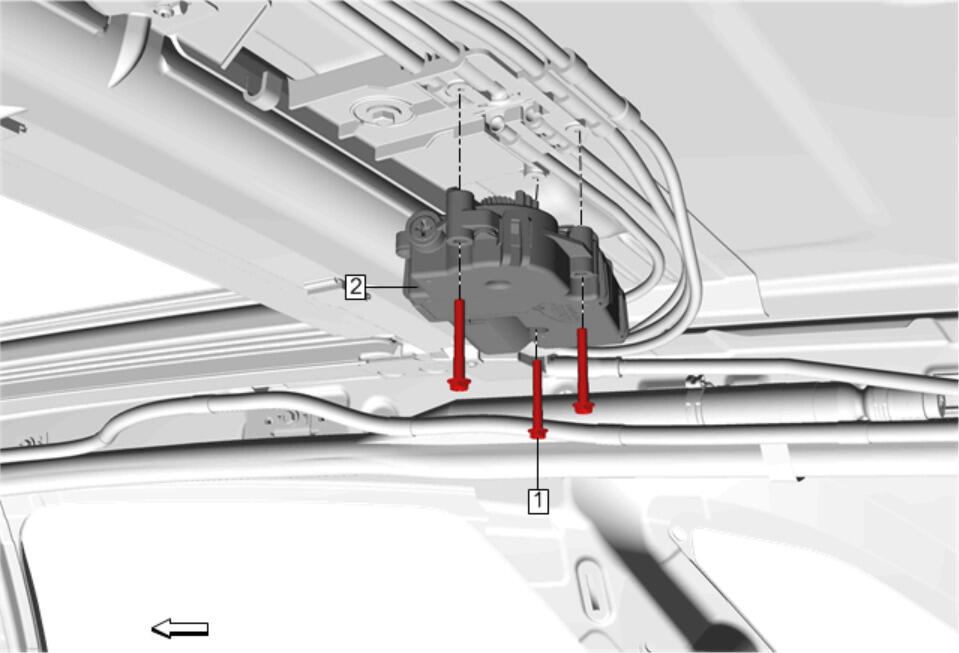

GM4276683

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U)
Disconnect the electrical connector.

1

Sunroof Window Motor Bolt [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
4 N.m (35 lb in)

2

Sunroof Window Motor

Procedure

Install the sunroof window motor to the frame with a turning motion, pushing upward to engage the motor into the drive cables.
After installation, perform the Initialization/teach process. Sunroof/Sunshade Motor Initialization
Verify the sunroof window motor operation.
