Quarter Window Trim Finish Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

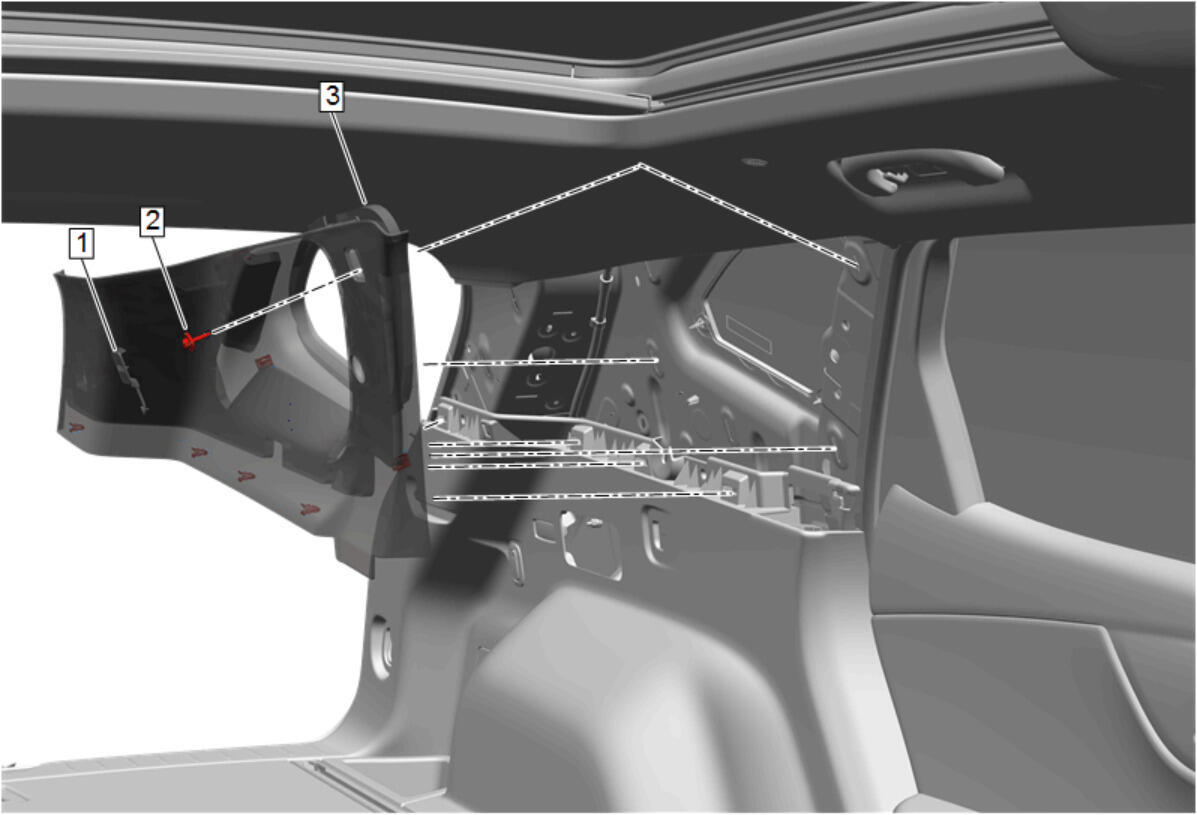

Callout	Component Name
Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Only remove the seat belt guide trim cover and upper guide bolt to gain access to the part. Rear Seat Belt Retractor Replacement
1	Quarter Window Trim Finish Panel Bolt Cap
2	Quarter Window Trim Finish Panel Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Quarter Window Trim Finish Panel Procedure Enable the SIR System. SIR Disabling and Enabling NOTE: Use a flat bladed plastic trim tool.
