Liftgate Lower Trim Finish Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

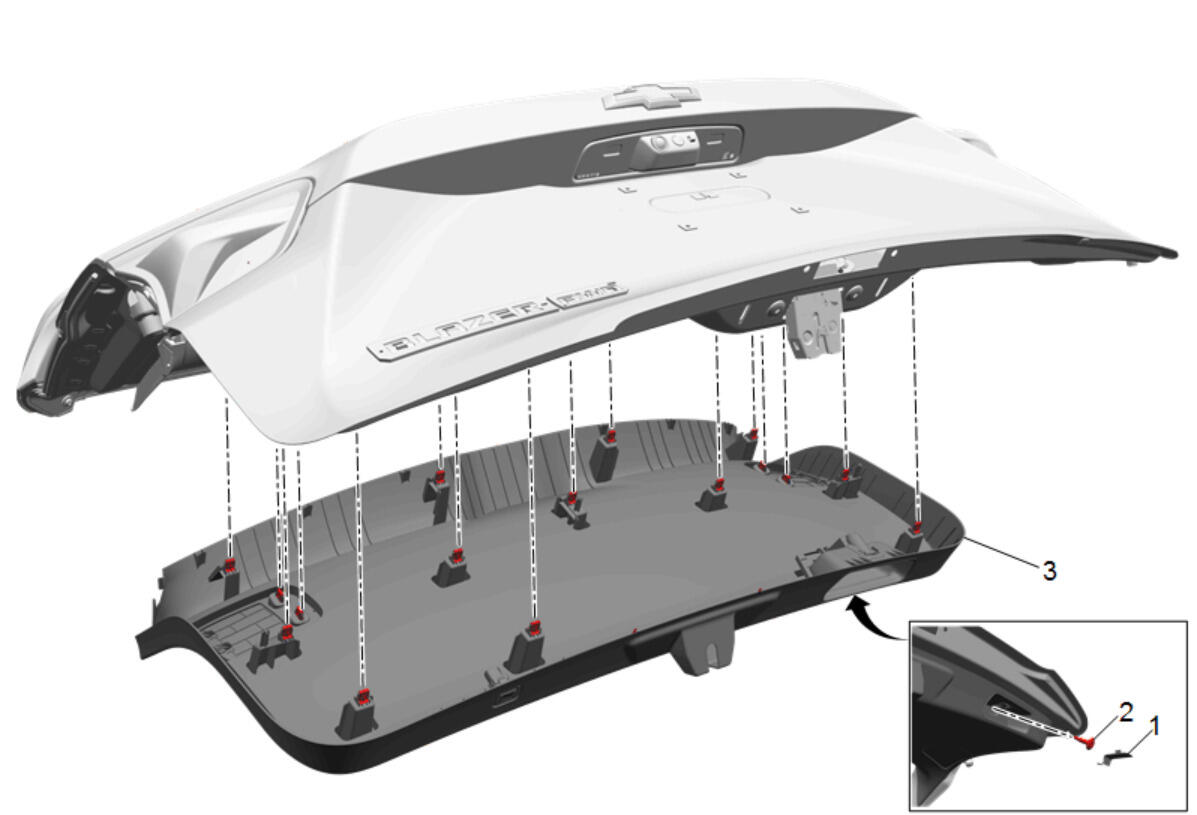

Callout	Component Name
1	Liftgate Lower Trim Finish Panel Pull Cup Cap
2	Liftgate Lower Trim Finish Panel Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Liftgate Lower Trim Finish Panel Procedure Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly. Disconnect the electrical connector, if equipped.

Callout

Component Name

Liftgate Lower Trim Finish Panel Pull Cup Cap

Liftgate Lower Trim Finish Panel Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Liftgate Lower Trim Finish Panel

Procedure

Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly.
Disconnect the electrical connector, if equipped.
