Rear Side Door Below Belt Rear Auxiliary Weatherstrip Replacement

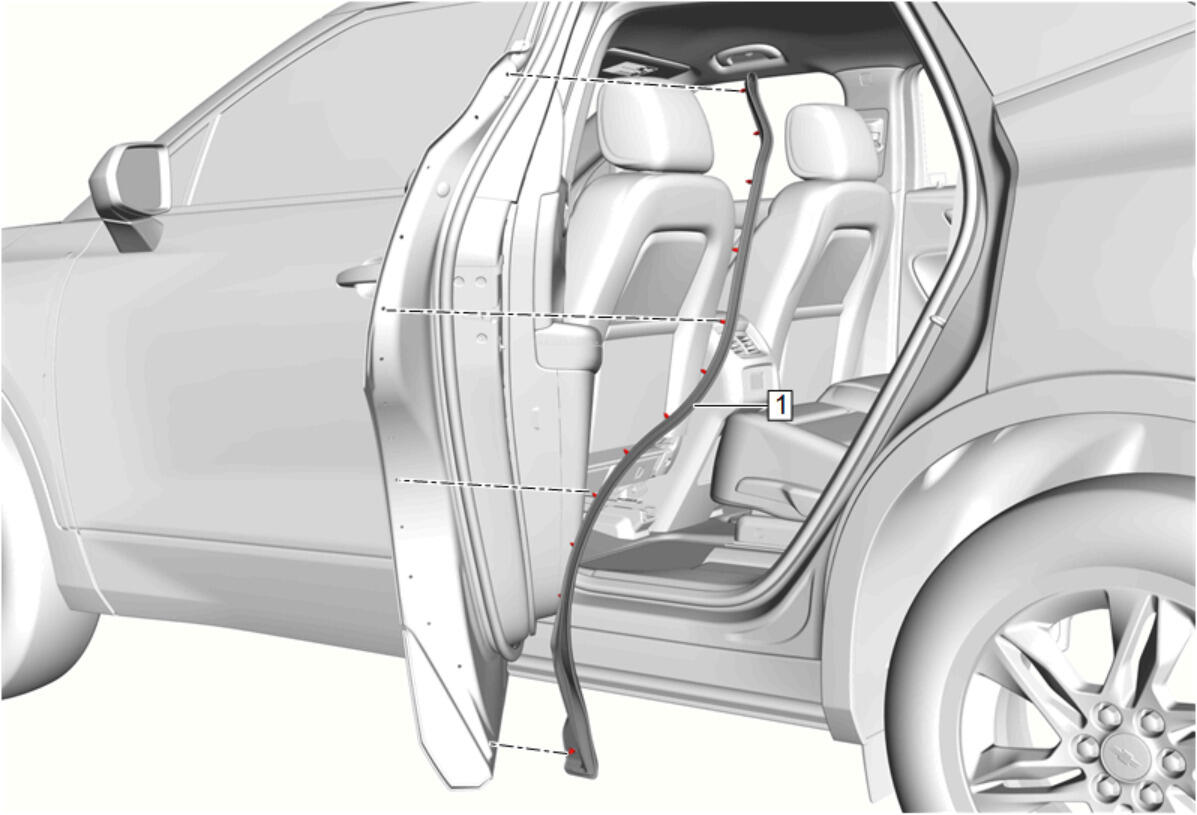

GM5133672Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door Below Belt Rear Auxiliary Weatherstrip

Procedure

  1. Place the door in the full open position to service the weatherstrip.
  2. With a suitable trim release tool, release the retainers securing the rear side door below belt rear auxiliary weatherstrip.
