Hood Hinge Replacement

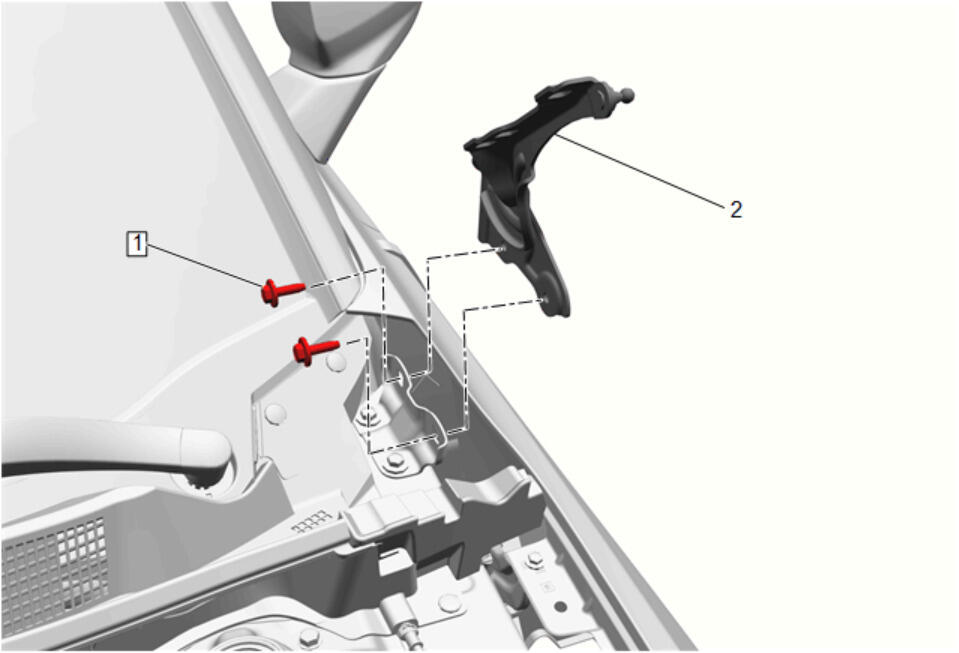

| Callout | Component Name |
|---|---|
| Preliminary Procedure Hood Replacement |
|
| 1 | Hood Hinge Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Hood Hinge |
| Callout | Component Name |
|---|---|
| Preliminary Procedure Hood Replacement |
|
| 1 | Hood Hinge Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Hood Hinge |
