Front Fender Front Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

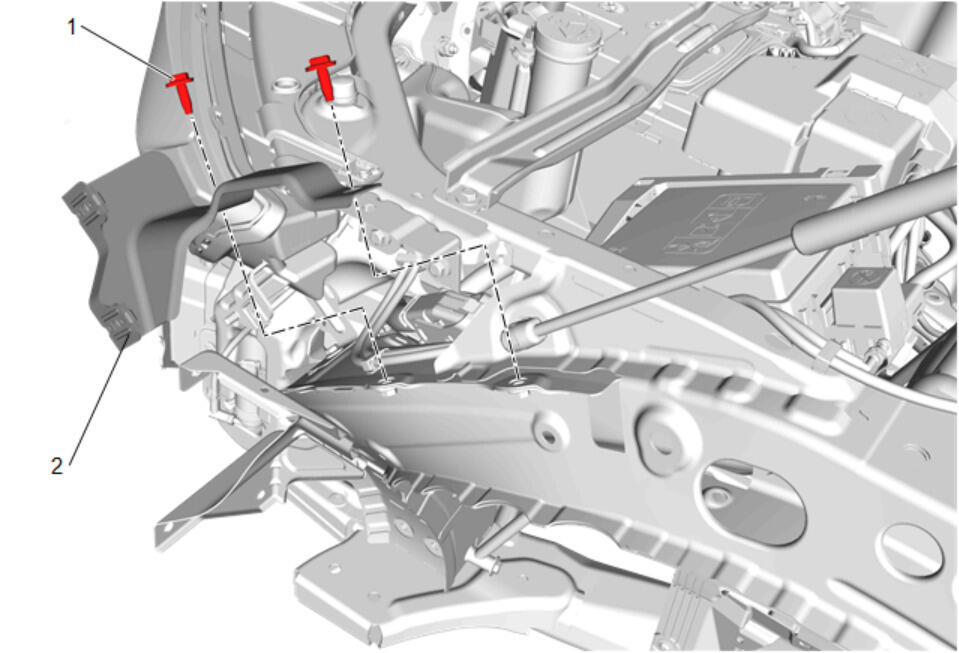

Callout	Component Name
Preliminary Procedure  Front Fender Replacement
1	Front Fender Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front Fender Front Bracket
